深入QML-Python通信 构建响应式交互界面的桥梁设计:QML+PySide6现代开发入门(五)

在QML+PySide6的应用架构中,前后端通信是核心能力。本文将通过一个完整的计数器示例,深入探索QML与Python的深度通信机制,展示如何构建响应式、可维护的现代交互界面。

摘要

现代桌面应用的核心挑战之一是前端界面与后端逻辑的高效通信。传统桌面开发中,UI线程与业务逻辑的紧密耦合导致代码难以维护和测试。QML+PySide6通过声明式前端与命令式后端的分离,以及强大的信号-槽机制,为这一问题提供了优雅的解决方案。

本文是"QML+PySide6现代风格UI开发技术"系列的第五篇,我们将通过一个完整的交互式计数器示例,深入探索QML与Python的通信机制。您将学习到:如何定义可被QML调用的Python槽函数、如何将Python属性暴露给QML、如何实现响应式的数据绑定、以及如何构建可维护的桥接层架构。更重要的是,我们将对比传统PySide6与QML-Python架构的本质差异,展示声明式交互在现代桌面开发中的显著优势。

一、知识点设计与分析

1.1 QML-Python通信架构设计

QML与Python的通信建立在多层抽象之上,形成了一个清晰、高效的架构:

通信架构的核心设计原则

原则 实现机制 优势分析
前后端分离 QML负责UI,Python负责逻辑 关注点分离,提高可维护性
单向数据流 用户操作→槽调用→状态更新→界面刷新 可预测的状态管理
响应式设计 属性绑定+信号通知 自动同步,减少手动更新
类型安全 自动类型转换与验证 减少运行时错误
线程安全 主线程UI,工作线程计算 流畅的用户体验

1.2 信号-槽机制与属性系统

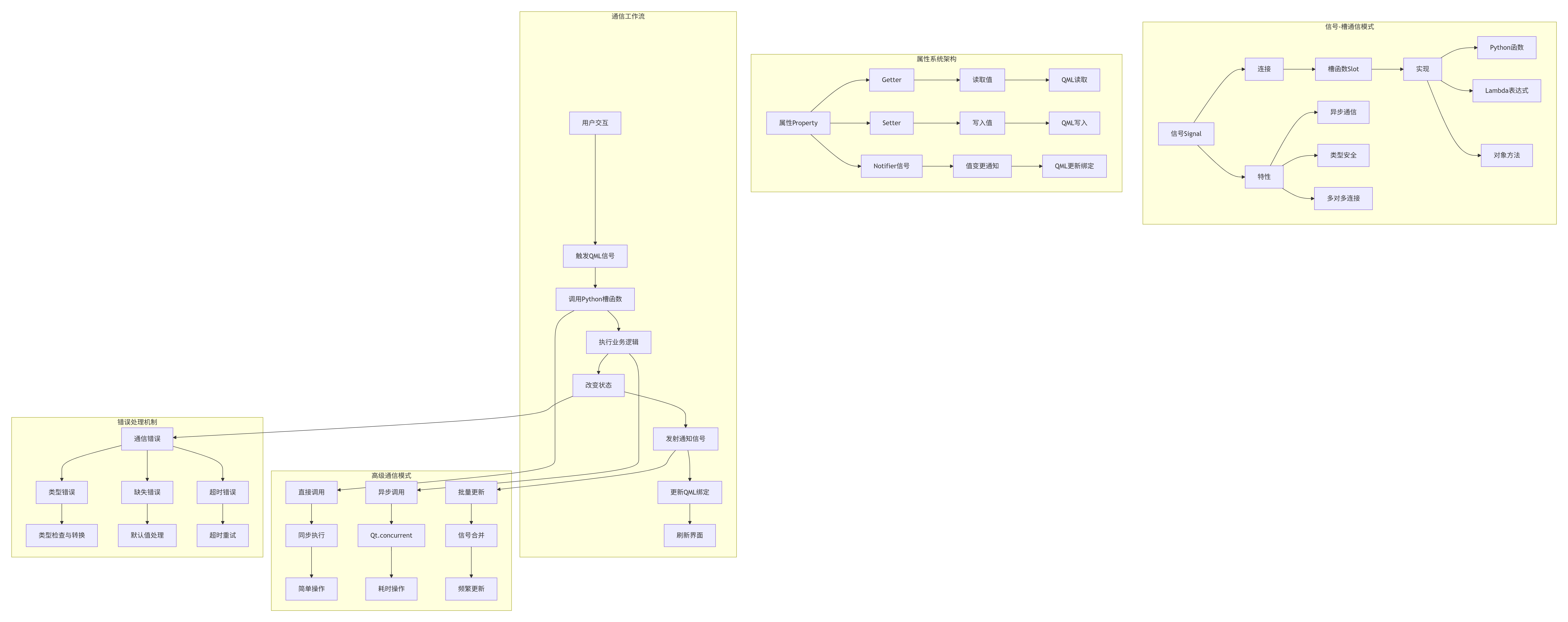

QML-Python通信的核心是Qt的信号-槽机制和属性系统,这两者共同构成了响应式编程的基础:

二、代码结构详解

2.1 项目架构与通信层次

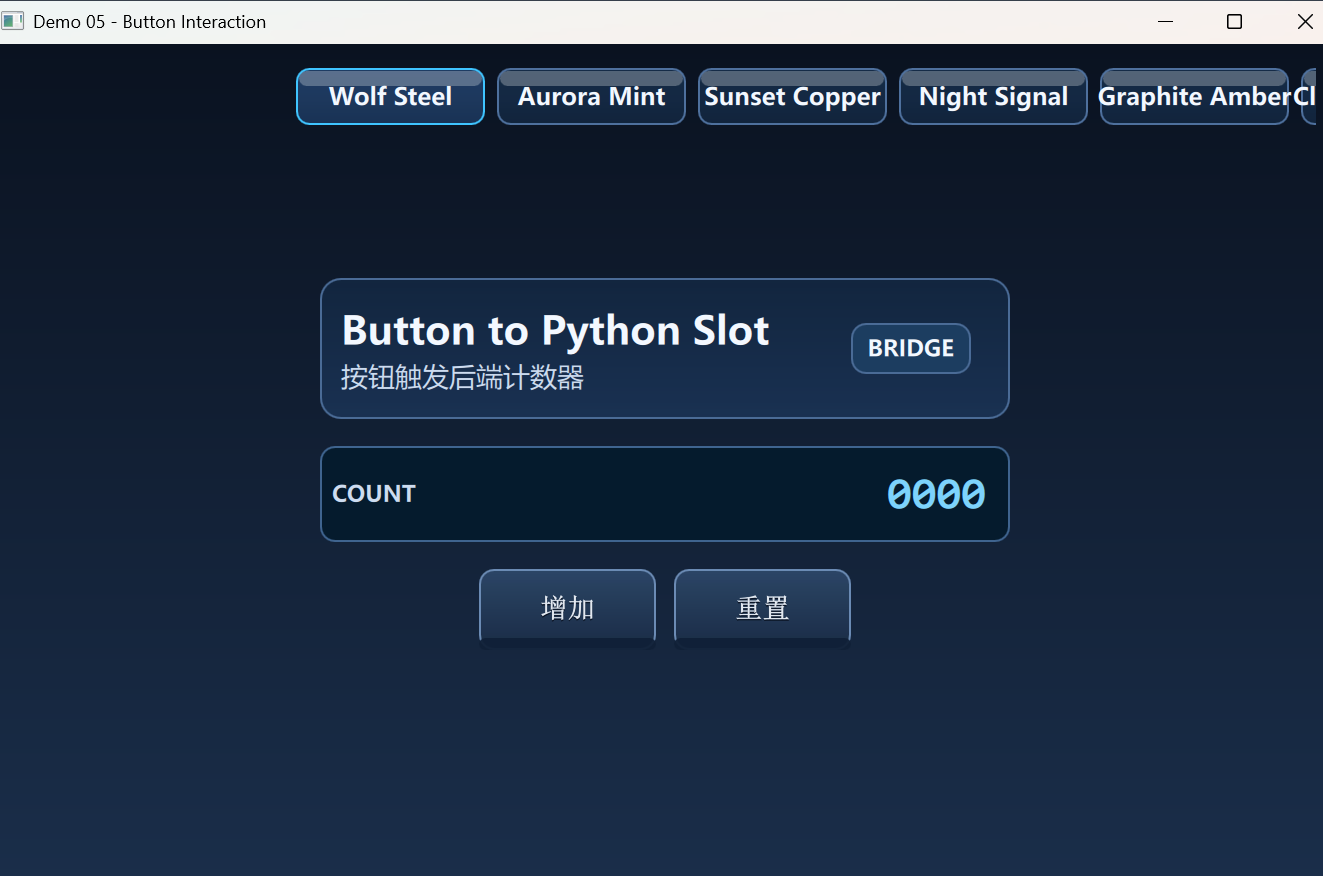

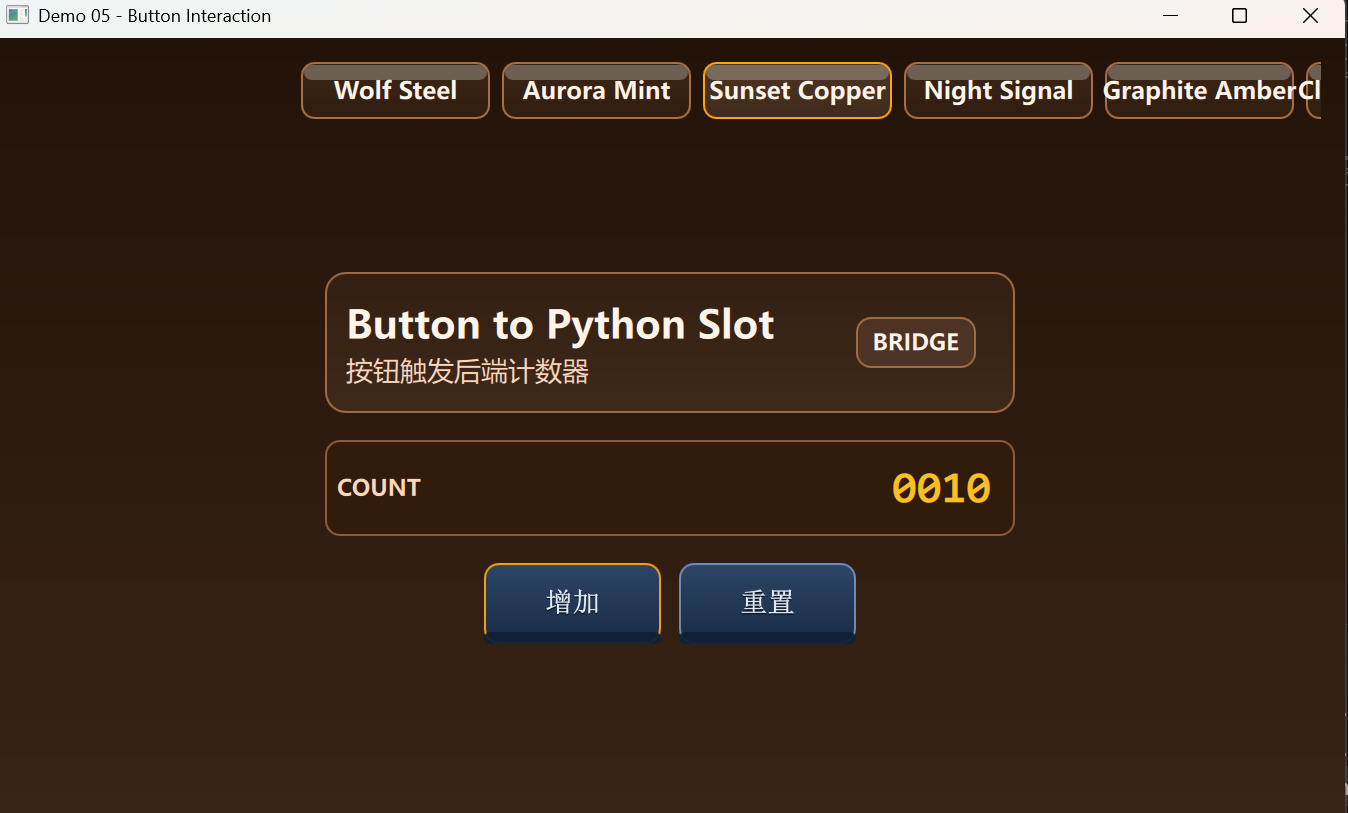

本示例构建了一个完整的QML-Python通信系统,展示了计数器应用的最佳实践:

bash 复制代码
demo_05/
├── 05_button_interaction.py     # Python启动器 + 桥接类
├── 05_button_interaction.qml    # 主QML界面
└── _shared/                    # 共享组件库
    ├── ModernStyleLibrary.qml  # 现代风格库
    ├── StylePresetStrip.qml    # 样式预设条
    ├── IndustrialSectionHeader.qml # 工业节头
    ├── NeoDigitalReadout.qml   # 数字显示组件
    └── RaisedButton.qml        # 凸起按钮组件

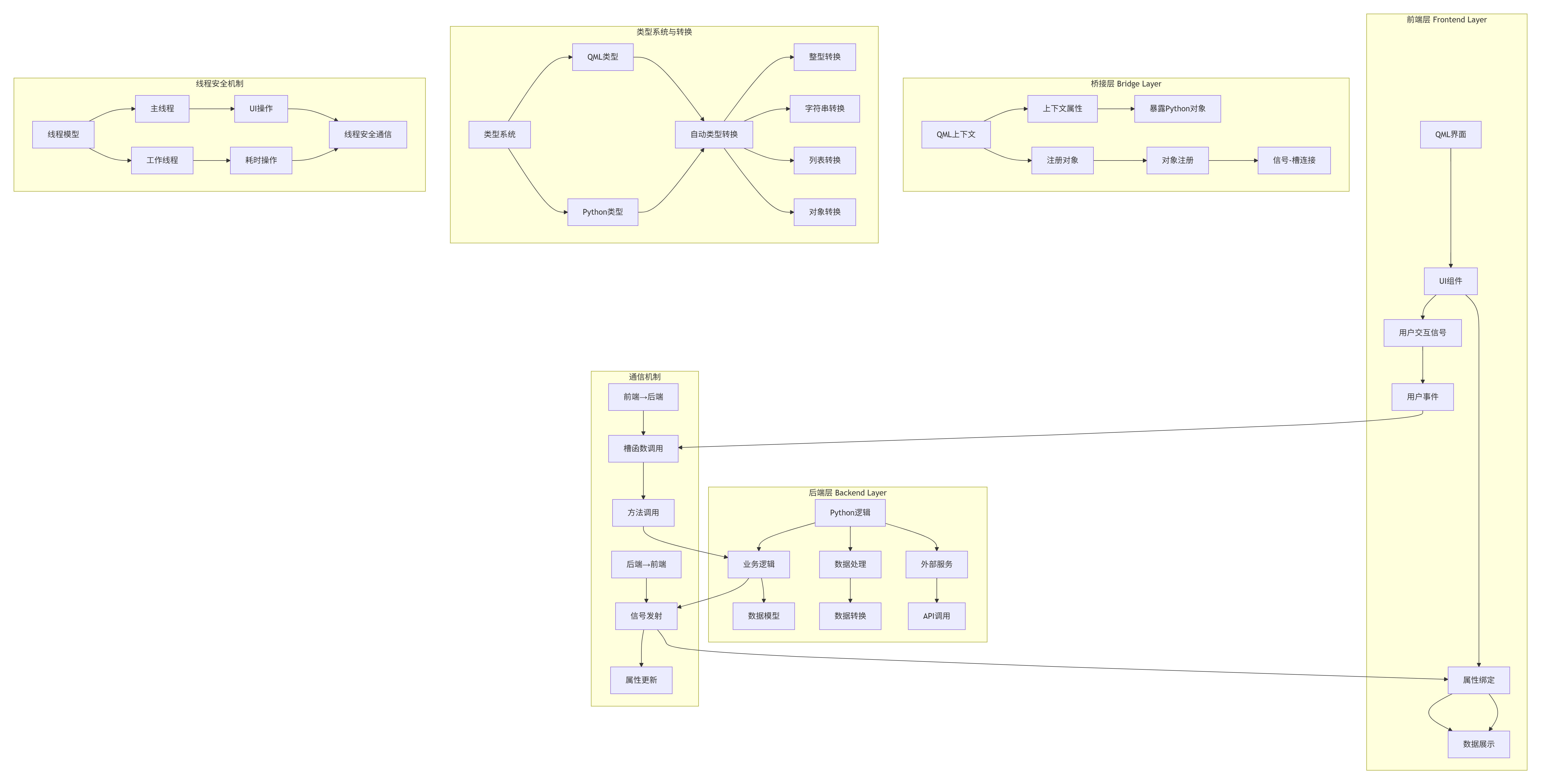

完整的通信架构层次分析

2.2 Python桥接类深度解析

2.2.1 CounterBridge:完整的桥接类实现

CounterBridge类是QML-Python通信的核心,展示了Qt for Python的最佳实践:

python 复制代码
from PySide6.QtCore import QObject, Property, Signal, Slot

class CounterBridge(QObject):
    # 1. 定义信号 - 当count属性变化时发射
    countChanged = Signal()

    def __init__(self) -> None:
        super().__init__()
        self._count = 0  # 私有成员,存储实际数据

    # 2. 定义属性 - 使用@property装饰器和Property类
    @Property(int, notify=countChanged)
    def count(self) -> int:
        """count属性的getter方法

        当QML读取counterBridge.count时调用此方法
        返回当前的计数值
        """
        return self._count

    # 3. 槽函数 - 可被QML直接调用
    @Slot()
    def increment(self) -> None:
        """增加计数值

        当QML调用counterBridge.increment()时执行
        增加计数值并发射变化信号
        """
        self._count += 1
        self.countChanged.emit()  # 通知QML属性已更新

    @Slot()
    def reset(self) -> None:
        """重置计数值

        当QML调用counterBridge.reset()时执行
        重置计数值并发射变化信号
        """
        self._count = 0
        self.countChanged.emit()  # 通知QML属性已更新

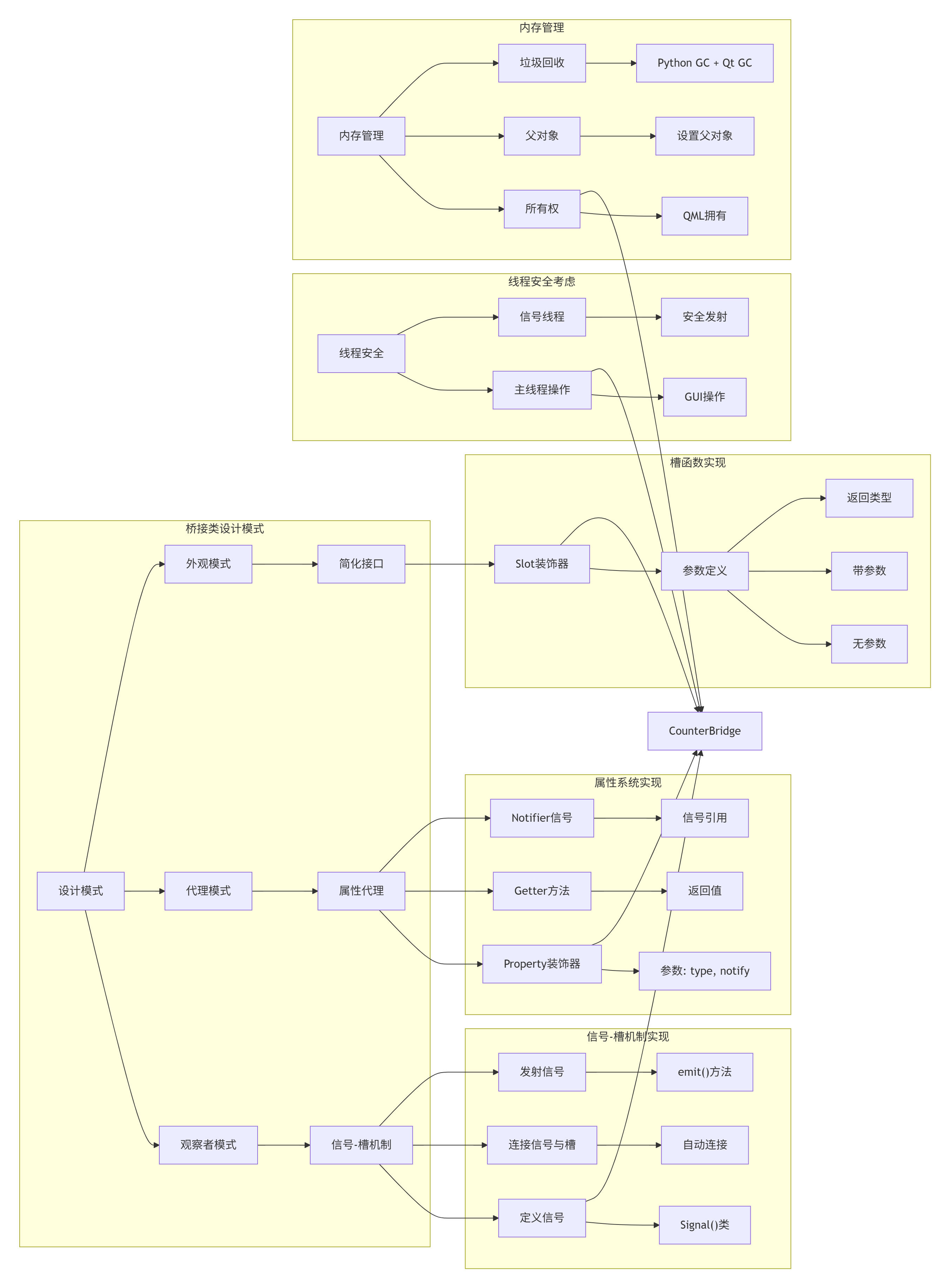

桥接类的设计模式分析

关键设计决策解析

  1. QObject继承 :所有需要与QML通信的Python类必须继承自QObject

  2. 信号定义 :使用Signal()类定义信号,支持参数类型声明

  3. 属性装饰器@Property装饰器将Python属性暴露给QML

    • int:指定属性类型,确保类型安全

    • notify=countChanged:指定变化通知信号

  4. 槽函数装饰器@Slot()装饰器将Python方法暴露为QML可调用的槽

  5. 私有成员 :使用_count存储实际数据,通过属性访问器控制访问

2.2.2 主函数:桥接注册与引擎初始化

Python主函数负责创建应用、初始化引擎、注册桥接类:

python 复制代码
import sys
from pathlib import Path
from PySide6.QtCore import QObject, Property, Signal, Slot
from PySide6.QtGui import QGuiApplication
from PySide6.QtQml import QQmlApplicationEngine

def main() -> int:
    # 1. 创建Qt应用实例
    app = QGuiApplication(sys.argv)

    # 2. 创建QML引擎
    engine = QQmlApplicationEngine()

    # 3. 创建桥接对象实例
    bridge = CounterBridge()

    # 4. 注册桥接对象到QML上下文
    # 将Python对象暴露为QML全局属性"counterBridge"
    engine.rootContext().setContextProperty("counterBridge", bridge)

    # 5. 加载QML文件
    qml_file = Path(__file__).with_suffix('.qml')
    engine.load(str(qml_file))

    # 6. 验证加载结果
    if not engine.rootObjects():
        return -1

    # 7. 启动事件循环
    return app.exec()

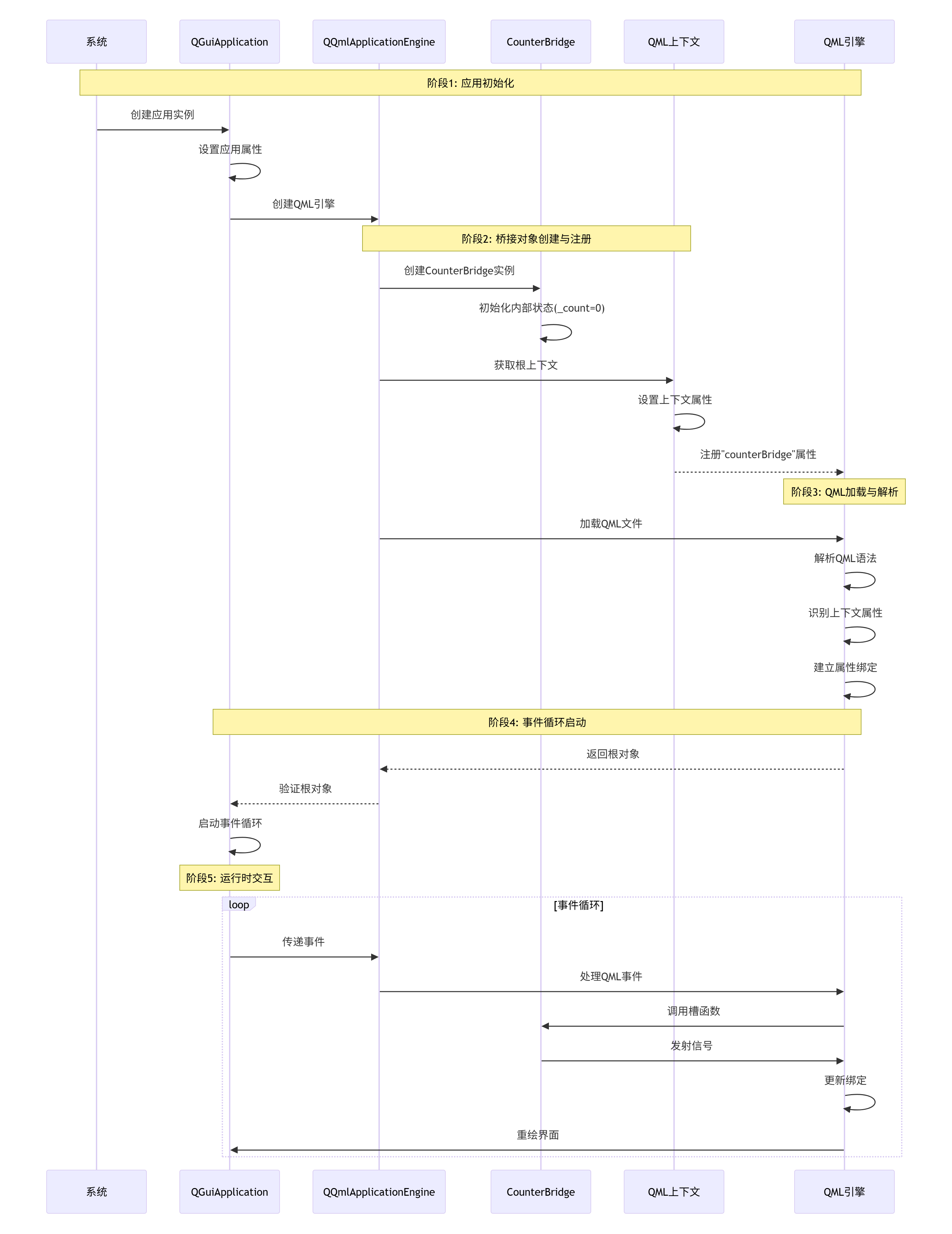

初始化流程的关键要点

2.3 QML界面与通信实现

2.3.1 数字显示组件:属性绑定的典范

NeoDigitalReadout组件展示了如何将Python属性绑定到QML显示:

javascript 复制代码
// NeoDigitalReadout.qml - 数字显示组件
Item {
    id: root

    // 组件属性
    property string label: "VALUE"
    property string unit: ""
    property real value: 0
    property int digits: 4
    property int decimals: 0

    width: 460
    height: 80

    // 绑定到Python桥接属性
    // value: counterBridge.count
    // 当counterBridge.countChanged信号发射时,此绑定会自动更新

    Rectangle {
        anchors.fill: parent
        color: styleLib.panel
        radius: styleLib.radiusM
        border.width: styleLib.borderNormal
        border.color: styleLib.panelEdge

        Column {
            anchors.centerIn: parent
            spacing: 4

            // 标签
            Label {
                text: root.label
                color: styleLib.textSoft
                font.pixelSize: styleLib.fontCaption
            }

            // 数值显示
            Row {
                spacing: 4

                Label {
                    text: {
                        // 格式化数值
                        var formatted = root.value.toFixed(root.decimals)

                        // 确保位数
                        var parts = formatted.split('.')
                        var integerPart = parts[0]
                        var decimalPart = parts.length > 1 ? '.' + parts[1] : ''

                        // 补零
                        while (integerPart.length < root.digits) {
                            integerPart = '0' + integerPart
                        }

                        return integerPart + decimalPart
                    }
                    color: styleLib.textStrong
                    font.pixelSize: 32
                    font.family: "Courier New"  // 等宽字体,数字对齐
                    font.bold: true
                }

                // 单位
                Label {
                    text: root.unit
                    color: styleLib.textSoft
                    font.pixelSize: styleLib.fontCaption
                    anchors.verticalCenter: parent.verticalCenter
                }
            }
        }
    }
}

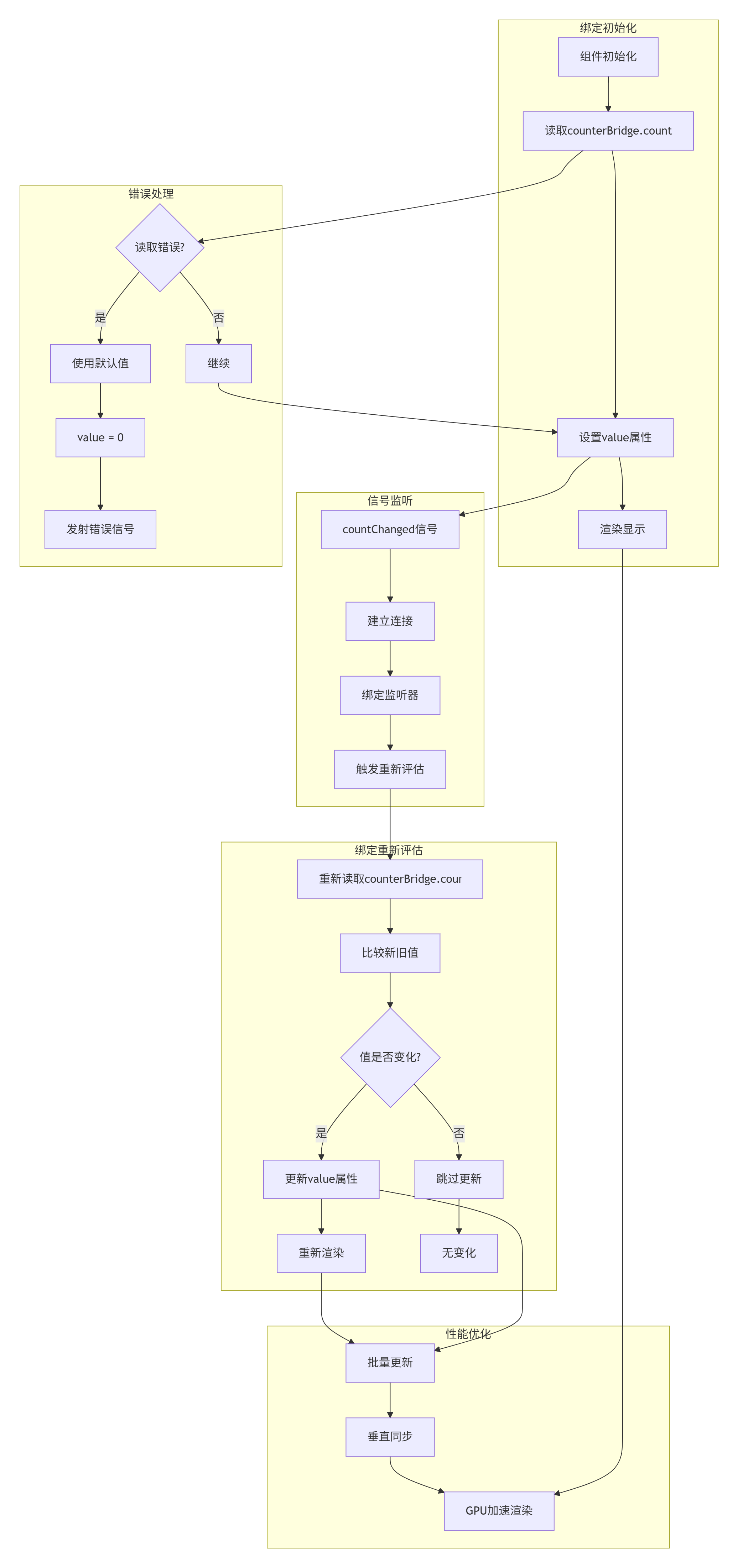

属性绑定的工作流程

2.3.2 按钮交互:信号-槽连接的实现

RaisedButton组件和主QML文件展示了如何连接按钮点击到Python槽函数:

javascript 复制代码
// 主QML文件中的按钮定义
Row {
    spacing: 12
    anchors.horizontalCenter: parent.horizontalCenter

    // 增加按钮
    RaisedButton {
        styleLibrary: styleLib
        text: "增加"

        // 点击信号连接到Python槽函数
        onClicked: {
            // 直接调用Python桥接对象的槽函数
            counterBridge.increment()
        }
    }

    // 重置按钮
    RaisedButton {
        styleLibrary: styleLib
        text: "重置"

        onClicked: {
            // 直接调用Python桥接对象的槽函数
            counterBridge.reset()
        }
    }
}

// RaisedButton.qml - 自定义按钮组件
Rectangle {
    id: button

    // 组件属性
    property string text: ""
    property alias styleLibrary: internal.styleLibrary
    signal clicked()

    width: 120
    height: 48

    // 样式属性
    property color normalColor: styleLibrary ? styleLib.accent : "#22d3ee"
    property color hoverColor: Qt.lighter(normalColor, 1.2)
    property color pressedColor: Qt.darker(normalColor, 1.2)

    // 当前颜色
    color: mouseArea.pressed ? pressedColor :
           mouseArea.containsMouse ? hoverColor : normalColor

    // 圆角
    radius: styleLibrary ? styleLib.radiusM : 8

    // 标签
    Label {
        anchors.centerIn: parent
        text: button.text
        color: "white"
        font.pixelSize: styleLibrary ? styleLib.fontBody : 16
        font.bold: true
    }

    // 鼠标区域
    MouseArea {
        id: mouseArea
        anchors.fill: parent
        hoverEnabled: true
        cursorShape: Qt.PointingHandCursor

        // 点击事件
        onClicked: {
            // 发射点击信号
            button.clicked()

            // 可选:添加点击反馈动画
            clickAnim.start()
        }
    }

    // 点击动画
    SequentialAnimation {
        id: clickAnim
        PropertyAnimation {
            target: button
            property: "scale"
            from: 1.0
            to: 0.95
            duration: 50
        }
        PropertyAnimation {
            target: button
            property: "scale"
            from: 0.95
            to: 1.0
            duration: 50
        }
    }
}

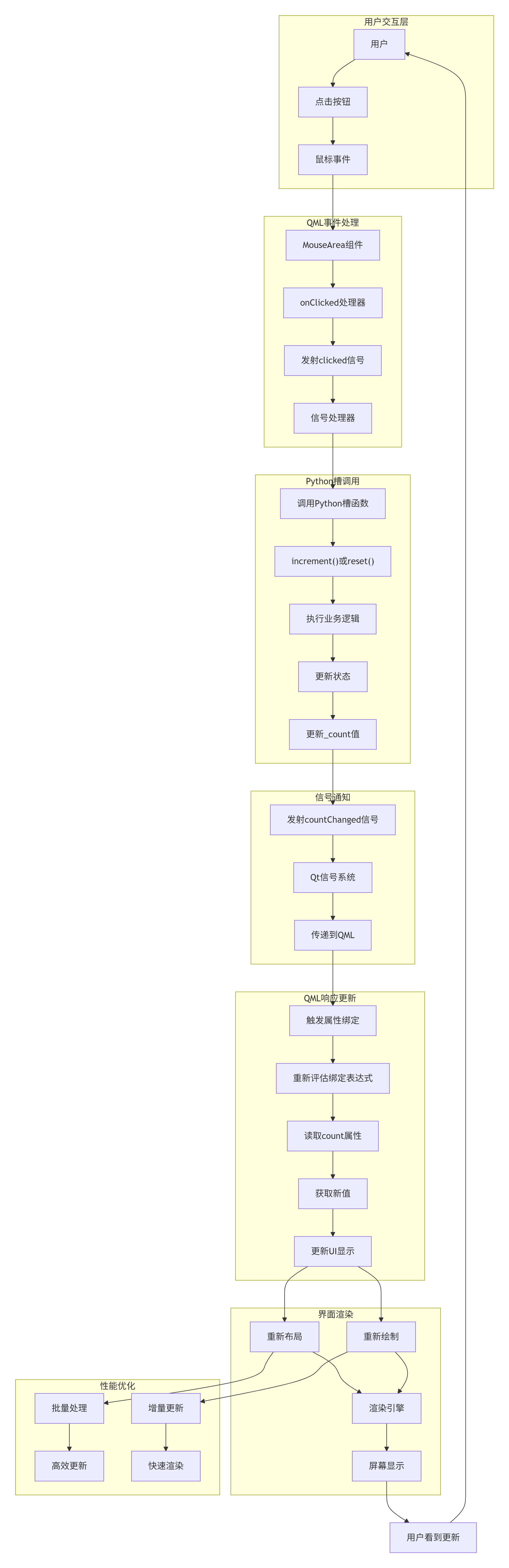

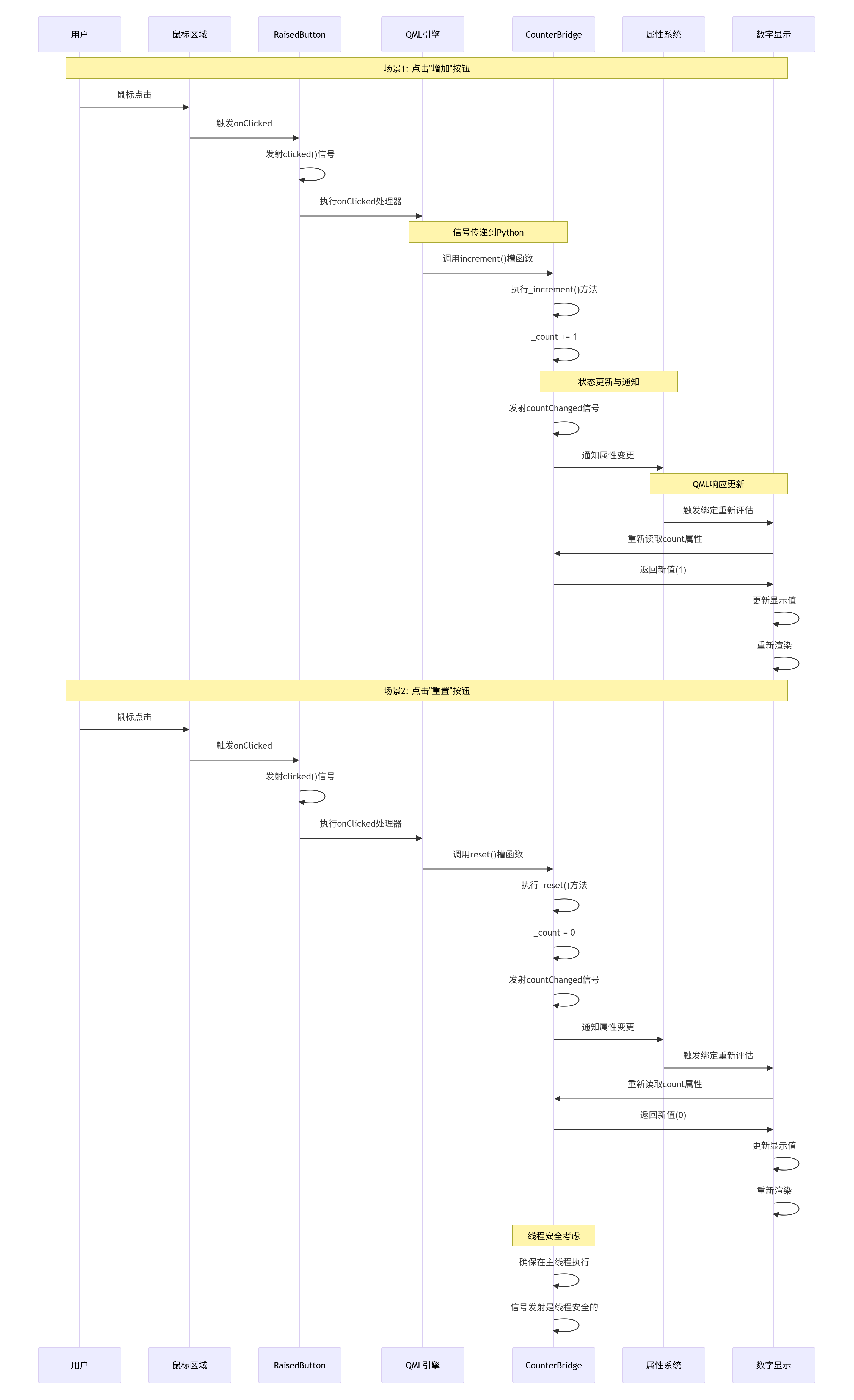

按钮交互的完整信号流

三、控制流程与通信机制

3.1 完整的QML-Python通信流程

本示例展示了从用户交互到界面更新的完整通信流程:

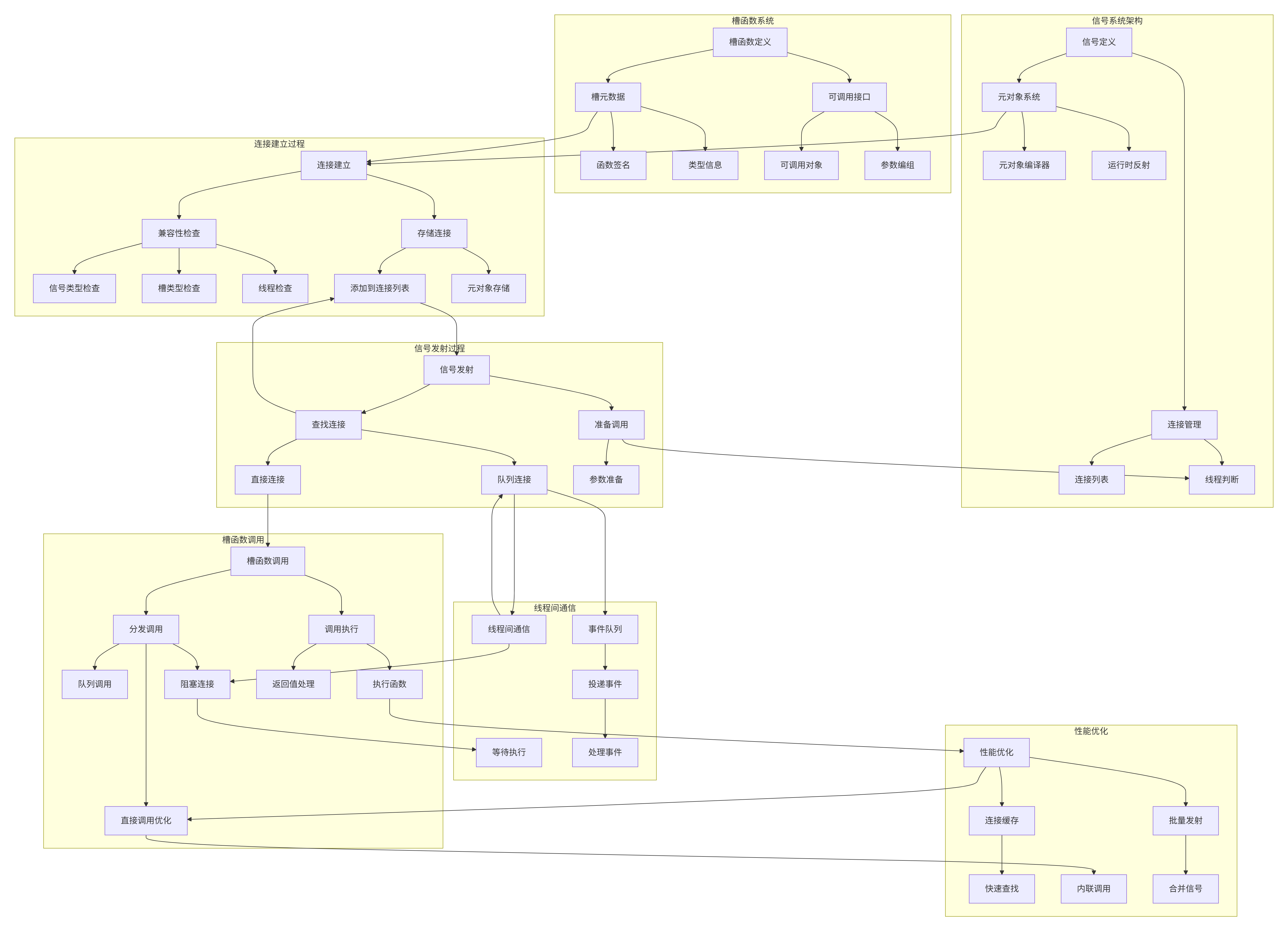

3.2 信号-槽机制的内部工作原理

Qt的信号-槽机制是一个复杂的系统,了解其内部工作原理有助于优化性能:

关键性能优化技术

  1. 连接缓存:缓存信号-槽连接,减少查找时间

  2. 直接调用:同线程使用直接函数调用,避免事件队列

  3. 参数编组优化:减少参数复制和转换开销

  4. 批量信号发射:合并多个信号发射,减少重绘次数

  5. 惰性求值:只在需要时重新计算绑定表达式

四、分析与比较:QML-Python通信vs传统通信

4.1 实现计数器功能的代码对比

QML-Python声明式实现(50行核心代码)

javascript 复制代码
// QML前端 - 简洁的声明式界面
Column {
    anchors.centerIn: parent
    spacing: 18

    // 节头
    IndustrialSectionHeader {
        width: 460
        title: "Button to Python Slot"
        subtitle: "按钮触发后端计数器"
    }

    // 数字显示 - 自动绑定到Python属性
    NeoDigitalReadout {
        width: 460
        label: "COUNT"
        value: counterBridge.count  // 自动绑定
        digits: 4
    }

    // 按钮行
    Row {
        spacing: 12
        RaisedButton {
            text: "增加"
            onClicked: counterBridge.increment()  // 直接调用Python
        }
        RaisedButton {
            text: "重置"
            onClicked: counterBridge.reset()  // 直接调用Python
        }
    }
}
python 复制代码
# Python后端 - 清晰的业务逻辑
class CounterBridge(QObject):
    countChanged = Signal()

    def __init__(self) -> None:
        super().__init__()
        self._count = 0

    @Property(int, notify=countChanged)
    def count(self) -> int:
        return self._count

    @Slot()
    def increment(self) -> None:
        self._count += 1
        self.countChanged.emit()  # 自动通知前端

    @Slot()
    def reset(self) -> None:
        self._count = 0
        self.countChanged.emit()  # 自动通知前端

传统PySide6命令式实现(150+行复杂代码)

python 复制代码
from PySide6.QtWidgets import (QWidget, QVBoxLayout, QHBoxLayout,
                               QLabel, QPushButton, QFrame)
from PySide6.QtCore import Qt, QTimer
from PySide6.QtGui import QFont, QLinearGradient, QPainter

class TraditionalCounterWindow(QWidget):
    def __init__(self):
        super().__init__()
        self.count = 0
        self.init_ui()
        self.setup_connections()

    def init_ui(self):
        # 1. 创建主布局
        main_layout = QVBoxLayout()
        main_layout.setAlignment(Qt.AlignCenter)
        main_layout.setSpacing(18)

        # 2. 创建标题
        title_label = QLabel("Button to Python Slot")
        title_font = QFont("Arial", 24)
        title_font.setBold(True)
        title_label.setFont(title_font)
        title_label.setAlignment(Qt.AlignCenter)
        title_label.setStyleSheet("color: white;")

        subtitle_label = QLabel("按钮触发后端计数器")
        subtitle_font = QFont("Arial", 16)
        subtitle_label.setFont(subtitle_font)
        subtitle_label.setAlignment(Qt.AlignCenter)
        subtitle_label.setStyleSheet("color: #cbd5e1;")

        # 3. 创建数字显示
        self.counter_display = QLabel("0000")
        self.counter_display.setFixedSize(460, 80)
        self.counter_display.setAlignment(Qt.AlignCenter)

        # 手动设置样式
        self.counter_display.setStyleSheet("""
            QLabel {
                background-color: #1a2b3c;
                border: 1px solid #4a6488;
                border-radius: 8px;
                color: #f8fafc;
                font-family: 'Courier New';
                font-size: 32px;
                font-weight: bold;
            }
        """)

        # 4. 创建按钮
        button_layout = QHBoxLayout()
        button_layout.setSpacing(12)

        self.increment_button = QPushButton("增加")
        self.increment_button.setFixedSize(120, 48)
        self.increment_button.setStyleSheet("""
            QPushButton {
                background-color: #22d3ee;
                border: none;
                border-radius: 8px;
                color: white;
                font-size: 16px;
                font-weight: bold;
            }
            QPushButton:hover {
                background-color: #5ee0f3;
            }
            QPushButton:pressed {
                background-color: #0ea5e9;
            }
        """)

        self.reset_button = QPushButton("重置")
        self.reset_button.setFixedSize(120, 48)
        self.reset_button.setStyleSheet("""
            QPushButton {
                background-color: #22d3ee;
                border: none;
                border-radius: 8px;
                color: white;
                font-size: 16px;
                font-weight: bold;
            }
            QPushButton:hover {
                background-color: #5ee0f3;
            }
            QPushButton:pressed {
                background-color: #0ea5e9;
            }
        """)

        button_layout.addWidget(self.increment_button)
        button_layout.addWidget(self.reset_button)

        # 5. 组装界面
        main_layout.addWidget(title_label)
        main_layout.addWidget(subtitle_label)
        main_layout.addWidget(self.counter_display, 0, Qt.AlignCenter)
        main_layout.addLayout(button_layout, 0)

        # 6. 设置窗口
        self.setLayout(main_layout)
        self.resize(900, 560)
        self.setWindowTitle("传统计数器演示")

        # 7. 设置背景
        self.setAutoFillBackground(True)

    def setup_connections(self):
        """手动连接信号和槽"""
        self.increment_button.clicked.connect(self.on_increment)
        self.reset_button.clicked.connect(self.on_reset)

    def on_increment(self):
        """增加按钮点击处理"""
        self.count += 1
        self.update_display()

    def on_reset(self):
        """重置按钮点击处理"""
        self.count = 0
        self.update_display()

    def update_display(self):
        """手动更新显示"""
        # 格式化数字
        formatted = str(self.count).zfill(4)
        self.counter_display.setText(formatted)

    def paintEvent(self, event):
        """手动绘制渐变背景"""
        painter = QPainter(self)
        gradient = QLinearGradient(0, 0, 0, self.height())
        gradient.setColorAt(0.0, QColor("#0b1426"))
        gradient.setColorAt(1.0, QColor("#17263e"))
        painter.fillRect(self.rect(), gradient)
        super().paintEvent(event)

# 主函数
if __name__ == "__main__":
    from PySide6.QtWidgets import QApplication
    import sys

    app = QApplication(sys.argv)
    window = TraditionalCounterWindow()
    window.show()
    sys.exit(app.exec())

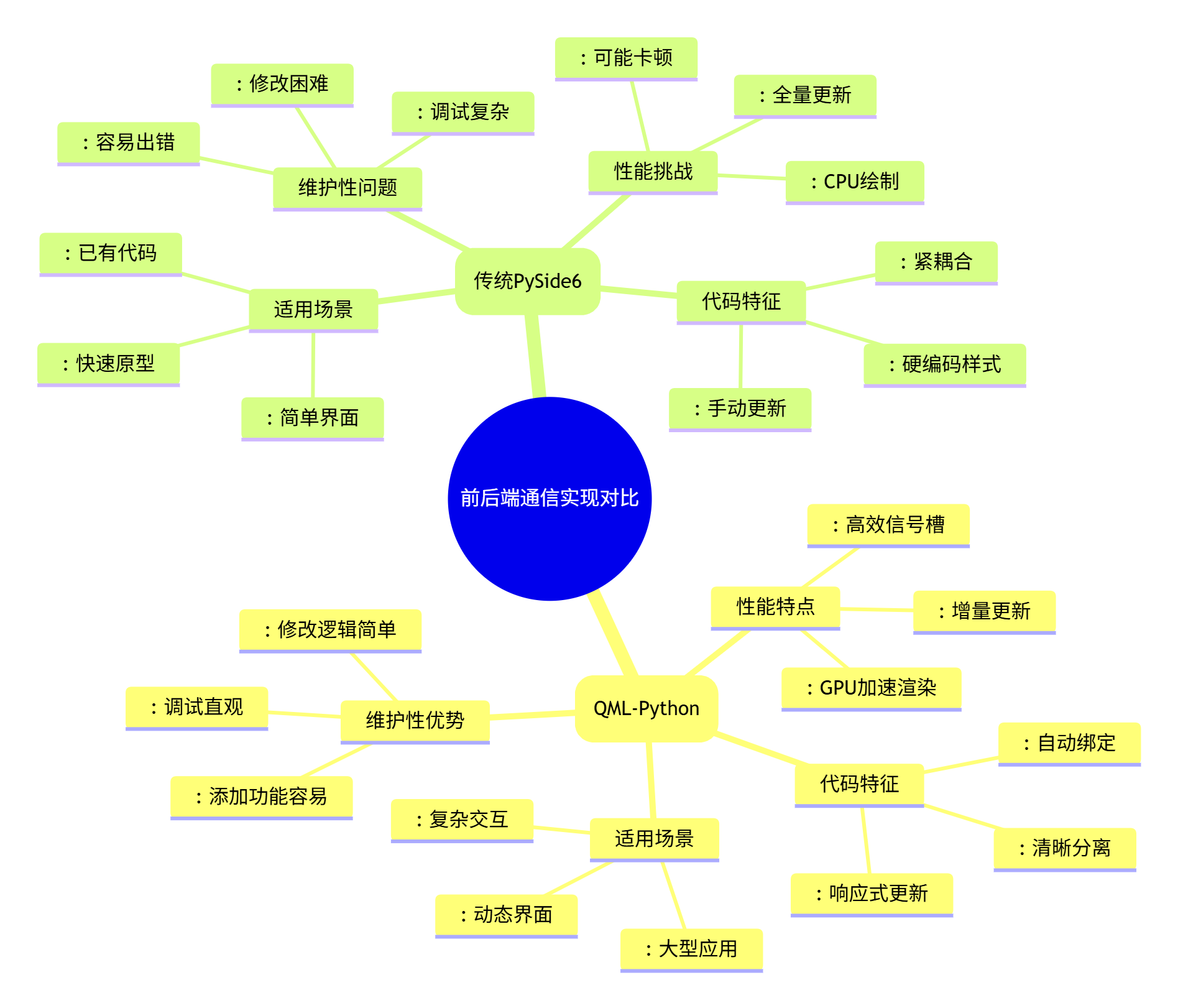

4.2 架构与维护性对比分析

4.3 扩展性与复用性对比

扩展需求 QML-Python实现 传统PySide6方式 效率提升
添加新功能 添加Python槽,更新QML绑定 需要:1)添加方法 2)连接信号 3)更新UI 4)处理状态 QML快4倍
修改业务逻辑 修改Python槽函数 需要修改多个地方的方法调用和UI更新 QML逻辑集中
添加新UI组件 添加QML组件,绑定属性 需要创建控件、设置样式、添加布局、连接信号 QML组件化
实现复杂交互 使用QML状态和转换 需要手动管理状态机和动画 QML内置支持
响应式设计 自动属性绑定 需要监听事件,手动重新计算 QML零配置

五、扩展与思考

5.1 构建复杂的企业级通信架构

在实际企业应用中,QML-Python通信需要更复杂的架构设计:

python 复制代码
from PySide6.QtCore import QObject, Property, Signal, Slot, QThread, pyqtSlot
from typing import Any, Dict, Optional
from dataclasses import dataclass
import json

@dataclass
class AppConfig:
    """应用配置数据类"""
    counter_max: int = 1000
    counter_min: int = 0
    counter_step: int = 1
    enable_sound: bool = True
    theme: str = "dark"

class BusinessLogic(QThread):
    """业务逻辑线程"""
    resultReady = Signal(dict)
    errorOccurred = Signal(str)

    def __init__(self):
        super().__init__()
        self._tasks = []

    def add_task(self, task_type: str, data: Any):
        """添加任务"""
        self._tasks.append((task_type, data))

    def run(self):
        """线程主循环"""
        while self.running:
            if self._tasks:
                task_type, data = self._tasks.pop(0)
                try:
                    result = self.process_task(task_type, data)
                    self.resultReady.emit(result)
                except Exception as e:
                    self.errorOccurred.emit(str(e))

    def process_task(self, task_type: str, data: Any) -> Dict:
        """处理任务"""
        if task_type == "increment":
            return {"type": "counter", "value": data + 1}
        elif task_type == "complex_calculation":
            # 模拟复杂计算
            import time
            time.sleep(2)  # 模拟耗时操作
            return {"type": "calculation", "result": data * 2}
        return {}

class EnterpriseBridge(QObject):
    """企业级桥接类"""
    # 信号定义
    counterChanged = Signal(int)
    configChanged = Signal(AppConfig)
    statusChanged = Signal(str)
    dataUpdated = Signal(dict)

    def __init__(self):
        super().__init__()
        self._counter = 0
        self._config = AppConfig()
        self._status = "idle"

        # 创建工作线程
        self.worker = BusinessLogic()
        self.worker.resultReady.connect(self.handle_result)
        self.worker.errorOccurred.connect(self.handle_error)
        self.worker.start()

    # 属性定义
    @Property(int, notify=counterChanged)
    def counter(self) -> int:
        return self._counter

    @Property(str, notify=statusChanged)
    def status(self) -> str:
        return self._status

    @Property(str, constant=True)
    def configJson(self) -> str:
        """配置JSON字符串"""
        return json.dumps(self._config.__dict__)

    # 槽函数
    @Slot()
    def increment(self):
        """增加计数器 - 在主线程执行简单操作"""
        if self._counter < self._config.counter_max:
            self._counter += self._config.counter_step
            self.counterChanged.emit(self._counter)
            self.statusChanged.emit("incremented")

    @Slot()
    def reset(self):
        """重置计数器"""
        self._counter = 0
        self.counterChanged.emit(self._counter)
        self.statusChanged.emit("reset")

    @Slot(int)
    def complexOperation(self, value: int):
        """复杂操作 - 在工作线程执行"""
        self.statusChanged.emit("processing")
        self.worker.add_task("complex_calculation", value)

    @Slot(str)
    def updateConfig(self, config_json: str):
        """更新配置"""
        try:
            data = json.loads(config_json)
            self._config = AppConfig(**data)
            self.configChanged.emit(self._config)
        except Exception as e:
            print(f"配置更新失败: {e}")

    # 结果处理
    @pyqtSlot(dict)
    def handle_result(self, result: Dict):
        """处理工作线程结果"""
        if result.get("type") == "calculation":
            self.dataUpdated.emit(result)
            self.statusChanged.emit("completed")

    @pyqtSlot(str)
    def handle_error(self, error: str):
        """处理错误"""
        self.statusChanged.emit(f"error: {error}")

5.2 高级通信模式与性能优化

javascript 复制代码
// 高级通信模式实现
Item {
    // 1. 批量更新模式
    property var batchUpdates: []

    Timer {
        id: batchTimer
        interval: 16  // 约60fps
        repeat: false
        onTriggered: applyBatchUpdates()
    }

    function queueUpdate(update) {
        batchUpdates.push(update)
        if (!batchTimer.running) {
            batchTimer.start()
        }
    }

    function applyBatchUpdates() {
        // 批量处理更新
        for (var i = 0; i < batchUpdates.length; i++) {
            var update = batchUpdates[i]
            // 应用更新
        }
        batchUpdates = []
    }

    // 2. 节流模式
    property bool throttleActive: false

    function throttledCall(fn, delay) {
        if (!throttleActive) {
            fn()
            throttleActive = true
            throttleTimer.start()
        }
    }

    Timer {
        id: throttleTimer
        interval: 100
        onTriggered: throttleActive = false
    }

    // 3. 防抖模式
    Timer {
        id: debounceTimer
        interval: 300
        onTriggered: {
            // 执行防抖后的操作
            performDebouncedAction()
        }
    }

    function debounceCall(fn) {
        debounceTimer.stop()
        debounceTimer.callback = fn
        debounceTimer.start()
    }

    // 4. 异步调用模式
    function asyncCall(pythonFunction, callback) {
        var result = pythonFunction()
        // 使用Promise或回调处理异步结果
        if (callback) {
            callback(result)
        }
    }

    // 5. 错误处理模式
    function safeCall(pythonFunction, fallback) {
        try {
            return pythonFunction()
        } catch (error) {
            console.error("调用失败:", error)
            if (fallback) {
                return fallback()
            }
            return null
        }
    }
}

5.3 状态管理与数据流架构

复杂应用需要更高级的状态管理架构:

javascript 复制代码
// 状态管理架构
Item {
    id: appState

    // 应用状态
    property int counter: 0
    property string status: "idle"
    property var config: ({})
    property var userData: ({})

    // 状态变更历史
    property var history: []

    // 状态监听器
    property var listeners: []

    // 更新状态
    function updateState(key, value) {
        // 保存历史
        history.push({key: key, oldValue: appState[key], newValue: value, timestamp: Date.now()})

        // 限制历史长度
        if (history.length > 100) {
            history.shift()
        }

        // 更新状态
        appState[key] = value

        // 通知监听器
        notifyListeners(key, value)
    }

    // 注册监听器
    function addListener(key, callback) {
        listeners.push({key: key, callback: callback})
    }

    // 通知监听器
    function notifyListeners(key, value) {
        for (var i = 0; i < listeners.length; i++) {
            var listener = listeners[i]
            if (listener.key === key) {
                listener.callback(value)
            }
        }
    }

    // 状态持久化
    function saveState() {
        var state = {
            counter: counter,
            config: config
        }
        // 保存到本地存储
        // ...
    }

    function loadState() {
        // 从本地存储加载
        // ...
    }

    // 状态回滚
    function undo() {
        if (history.length > 0) {
            var lastChange = history.pop()
            appState[lastChange.key] = lastChange.oldValue
        }
    }
}

六、总结与提升

6.1 核心技术收获

通过本教程,我们深入掌握了QML-Python通信的六大核心能力:

  1. 桥接类设计:创建继承自QObject的Python类,暴露属性和槽函数

  2. 信号-槽机制:使用信号进行前后端通信,实现响应式更新

  3. 属性绑定:将QML属性绑定到Python属性,实现自动同步

  4. 上下文注册:将Python对象注册到QML上下文,实现全局访问

  5. 类型安全通信:确保Python和QML之间的类型安全转换

  6. 线程安全设计:合理处理主线程与工作线程的通信

6.2 生产环境最佳实践

对于生产环境中的QML-Python通信,建议遵循以下最佳实践:

python 复制代码
# 生产级桥接类模板
from PySide6.QtCore import QObject, Property, Signal, Slot, QTimer, QUrl
from PySide6.QtQml import QQmlComponent, QQmlContext
import logging
from typing import Any, Optional, Dict

class ProductionBridge(QObject):
    """生产级桥接类模板"""

    # 信号定义
    dataChanged = Signal(dict)
    errorOccurred = Signal(str)
    statusChanged = Signal(str)

    def __init__(self, parent=None):
        super().__init__(parent)
        self.logger = logging.getLogger(self.__class__.__name__)
        self._data = {}
        self._initialized = False

        # 初始化检查
        self.init_timer = QTimer()
        self.init_timer.setSingleShot(True)
        self.init_timer.timeout.connect(self.check_initialization)
        self.init_timer.start(1000)

    @Property(bool, constant=True)
    def isReady(self) -> bool:
        """就绪状态"""
        return self._initialized

    @Slot()
    def initialize(self) -> None:
        """初始化桥接"""
        try:
            self._perform_initialization()
            self._initialized = True
            self.statusChanged.emit("ready")
        except Exception as e:
            self.errorOccurred.emit(f"初始化失败: {e}")
            self.logger.error(f"初始化失败: {e}")

    def _perform_initialization(self) -> None:
        """执行实际初始化"""
        # 这里添加初始化逻辑
        pass

    @Slot(str, result=bool)
    def validateInput(self, input_str: str) -> bool:
        """验证输入"""
        if not input_str or len(input_str) > 100:
            self.errorOccurred.emit("输入无效")
            return False
        return True

    @Slot(str, "QVariant")
    def updateData(self, key: str, value: Any) -> None:
        """更新数据"""
        try:
            old_value = self._data.get(key)
            self._data[key] = value
            self.dataChanged.emit({key: value})
            self.logger.info(f"数据更新: {key} = {value}")
        except Exception as e:
            self.errorOccurred.emit(f"更新失败: {e}")

    def check_initialization(self) -> None:
        """检查初始化状态"""
        if not self._initialized:
            self.errorOccurred.emit("桥接初始化超时")
            self.logger.warning("桥接初始化超时")

# 工厂函数
def create_bridge(engine: QQmlApplicationEngine) -> ProductionBridge:
    """创建桥接实例"""
    bridge = ProductionBridge()

    # 注册到QML
    context = engine.rootContext()
    context.setContextProperty("appBridge", bridge)

    # 设置所有权
    bridge.setParent(engine)

    return bridge

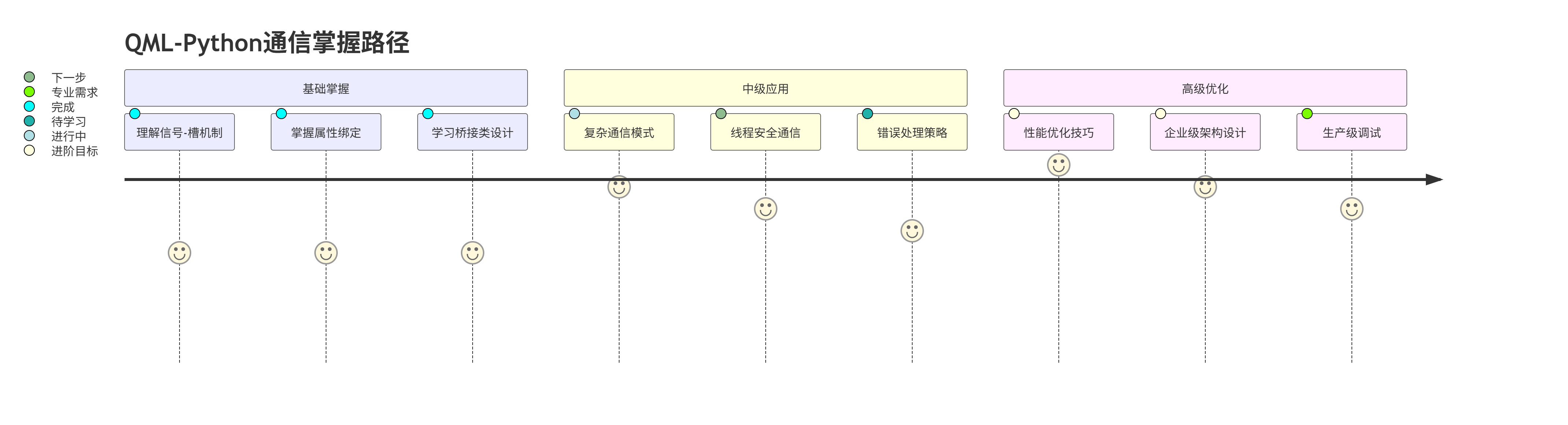

6.3 学习路径建议

6.4 实践练习

为巩固所学知识,建议尝试以下练习:

  1. 基础任务:添加一个"减一"按钮,实现计数器递减功能

  2. 中级挑战:实现一个可配置的计数器,支持设置步长和上下限

  3. 高级任务:创建一个多线程计数器,后台线程定时增加计数值

  4. 扩展思考:如何实现计数器的持久化,保存和加载计数值到文件?

结语

QML与Python的通信是现代桌面应用开发的核心技术,它连接了声明式UI的优雅与Python的强大功能。通过本教程,我们不仅掌握了基本的技术实现,更重要的是理解了前后端分离的设计哲学。

在复杂的桌面应用开发中,清晰的前后端边界、响应式的数据流、类型安全的通信是成功的关键。QML+PySide6提供的通信机制,让我们能够构建出既美观又健壮的应用程序。

记住,优秀的通信架构应该像一座精心设计的桥梁:稳定可靠、高效畅通、易于维护。掌握QML-Python通信,就是掌握了构建现代桌面应用的钥匙。

相关推荐
就叫_这个吧1 小时前
JavaScript中常用事件示例展示附源码
开发语言·javascript·html
浩瀚之水_csdn1 小时前
Python 推导式详解:从入门到精通
python
不会C语言的男孩1 小时前
C++ Primer Plus 第9章:内存模型和名称空间
开发语言·c++
重生之我是Java开发战士1 小时前
【贪心算法】加油站,单调递增的数字,坏了的计算器,合并区间,用最少数量的箭引爆气球
算法·贪心算法
zz34572981131 小时前
函数:python与c语言
c语言·开发语言·python
小欣加油1 小时前
leetcode 3300 替换为数位和后的最小元素
数据结构·c++·算法·leetcode
晚风予卿云月1 小时前
【枚举】普通枚举
数据结构·c++·算法·竞赛·算法随笔
li星野2 小时前
LLMLingua:用小型模型“剪枝”大语言模型提示词,让长文本不再昂贵
人工智能·python·学习·语言模型·剪枝
IronMurphy2 小时前
【算法五十三】1143. 最长公共子序列
算法
