TeamTalk-msg_server学习

1、概述

消息服务器：提供客户端大部分信令处理，直接处理或转发给其他服务(比如：聊天、传输文件等)

可以在部署在不同机器上，通过RouteServer(路由服务器)，为登录在不同MsgServer的用户提供消息转发功能。

2、代码学习

2.1、主函数代码

1、读取配置文件

2、8000端口上监听客户端连接

3、连接其他服务器

连接file_server，每个连接对应FileServConn实例，代码文件FileServConn.cpp

连接db_server，每个连接对应DBServConn实例，代码文件DBServConn.cpp

连接login_server，每个连接对应LoginServConn实例，代码文件LoginServConn.cpp

连接route_server，每个连接对应RouteServConn实例, 代码文件RouteServConn.cpp

连接push_server，每个连接对应PushServConn实例, 代码文件PushServConn.cpp

4、启动事件循环

2.2、init_login_serv_conn

每个连接服务器流程都差不多一样的，比如：init_login_serv_conn

serv_init模版函数最终会执行CLoginServConn::Connect函数，会连接login_server

cpp 复制代码

void init_login_serv_conn(serv_info_t* server_list, uint32_t server_count, const char* msg_server_ip_addr1,
		const char* msg_server_ip_addr2, uint16_t msg_server_port, uint32_t max_conn_cnt)
{
	g_login_server_list = server_list;
	g_login_server_count = server_count;

	serv_init<CLoginServConn>(g_login_server_list, g_login_server_count);

	g_msg_server_ip_addr1 = msg_server_ip_addr1;
	g_msg_server_ip_addr2 = msg_server_ip_addr2;
	g_msg_server_port = msg_server_port;
	g_max_conn_cnt = max_conn_cnt;

	netlib_register_timer(login_server_conn_timer_callback, NULL, 1000);
}

cpp 复制代码

void serv_init(serv_info_t* server_list, uint32_t server_count)
{
	for (uint32_t i = 0; i < server_count; i++) {
		T* pConn = new T();
		pConn->Connect(server_list[i].server_ip.c_str(), server_list[i].server_port, i);
		server_list[i].serv_conn = pConn;
		server_list[i].idle_cnt = 0;
		server_list[i].reconnect_cnt = MIN_RECONNECT_CNT / 2;
	}
}

cpp 复制代码

void CLoginServConn::Connect(const char* server_ip, uint16_t server_port, uint32_t serv_idx)
{
	log("Connecting to LoginServer %s:%d ", server_ip, server_port);
	m_serv_idx = serv_idx;
	m_handle = netlib_connect(server_ip, server_port, imconn_callback, (void*)&g_login_server_conn_map);

	if (m_handle != NETLIB_INVALID_HANDLE) {
		g_login_server_conn_map.insert(make_pair(m_handle, this));
	}
}

连接login_server成功后，会执行imconn_callback，CLoginServConn继承CImConn，根据多态会执行 CLoginServConn::OnConfirm

cpp 复制代码

void imconn_callback(void* callback_data, uint8_t msg, uint32_t handle, void* pParam)
{
	NOTUSED_ARG(handle);
	NOTUSED_ARG(pParam);

	if (!callback_data)
		return;

	ConnMap_t* conn_map = (ConnMap_t*)callback_data;
	CImConn* pConn = FindImConn(conn_map, handle);
	if (!pConn)
		return;

	//log("msg=%d, handle=%d ", msg, handle);

	switch (msg)
	{
	case NETLIB_MSG_CONFIRM:
		pConn->OnConfirm();
		break;
	case NETLIB_MSG_READ:
		pConn->OnRead();
		break;
	case NETLIB_MSG_WRITE:
		pConn->OnWrite();
		break;
	case NETLIB_MSG_CLOSE:
		pConn->OnClose();
		break;
	default:
		log("!!!imconn_callback error msg: %d ", msg);
		break;
	}

	pConn->ReleaseRef();
}

查看CLoginServConn::OnConfirm代码，连接login_server成功后，会立即向login_server发一个包，告诉login_server自己的ip、端口号、当前登录的用户数量和可容纳的最大用户数量。

这样login_server将来对于一个需要登录的用户，会根据不同的msg_server的负载状态来决定用户到底登录哪个msg_server。

cpp 复制代码

void CLoginServConn::OnConfirm()
{
	log("connect to login server success ");
	m_bOpen = true;
	g_login_server_list[m_serv_idx].reconnect_cnt = MIN_RECONNECT_CNT / 2;

	uint32_t cur_conn_cnt = 0;
	uint32_t shop_user_cnt = 0;

    //连接login_server成功以后,告诉login_server自己的ip地址、端口号
    //和当前登录的用户数量和可容纳的最大用户数量
    list<user_conn_t> user_conn_list;
    CImUserManager::GetInstance()->GetUserConnCnt(&user_conn_list, cur_conn_cnt);
	char hostname[256] = {0};
	gethostname(hostname, 256);
    IM::Server::IMMsgServInfo msg;
    msg.set_ip1(g_msg_server_ip_addr1);
    msg.set_ip2(g_msg_server_ip_addr2);
    msg.set_port(g_msg_server_port);
    msg.set_max_conn_cnt(g_max_conn_cnt);
    msg.set_cur_conn_cnt(cur_conn_cnt);
    msg.set_host_name(hostname);
    CImPdu pdu;
    pdu.SetPBMsg(&msg);
    pdu.SetServiceId(SID_OTHER);
    pdu.SetCommandId(CID_OTHER_MSG_SERV_INFO);
	SendPdu(&pdu);
}

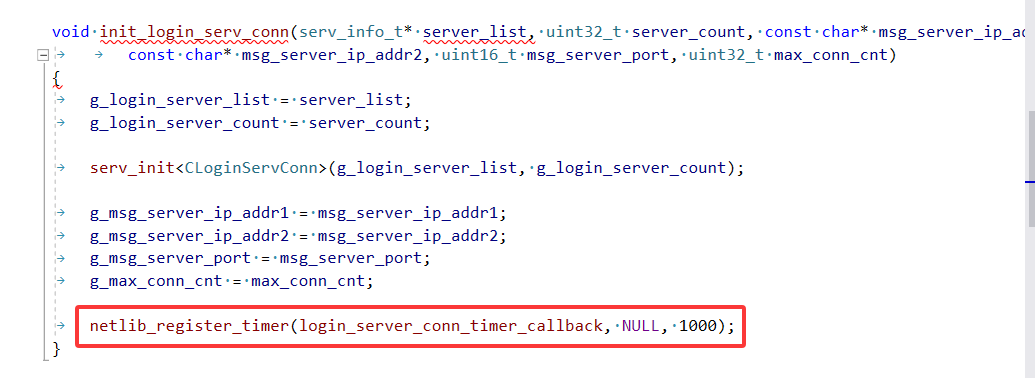

在连接每个服务器时，都会设置一个定时器，代码都差不多一样的。如下LoginServConn定时器中发送心跳包、检查心跳超时关闭连接。

cpp 复制代码

void login_server_conn_timer_callback(void* callback_data, uint8_t msg, uint32_t handle, void* pParam)
{
	ConnMap_t::iterator it_old;
	CLoginServConn* pConn = NULL;
	uint64_t cur_time = get_tick_count();

	for (ConnMap_t::iterator it = g_login_server_conn_map.begin(); it != g_login_server_conn_map.end(); ) {
		it_old = it;
		it++;

		pConn = (CLoginServConn*)it_old->second;
		pConn->OnTimer(cur_time);
	}

	// reconnect LoginServer
	serv_check_reconnect<CLoginServConn>(g_login_server_list, g_login_server_count);
}

cpp 复制代码

void CLoginServConn::OnTimer(uint64_t curr_tick)
{
	if (curr_tick > m_last_send_tick + SERVER_HEARTBEAT_INTERVAL) {
        IM::Other::IMHeartBeat msg;
        CImPdu pdu;
        pdu.SetPBMsg(&msg);
        pdu.SetServiceId(SID_OTHER);
        pdu.SetCommandId(CID_OTHER_HEARTBEAT);
		SendPdu(&pdu);
	}

	if (curr_tick > m_last_recv_tick + SERVER_TIMEOUT) {
		log("conn to login server timeout ");
		Close();
	}
}

定时器在一个事件循环中被触发，每个服务都有这样一个循环，也是经典实现模式，广泛应用在网络编程中。俗称 one thread one loop：每个线程运行一个无限循环(Event Loop)，负责处理该线程绑定的所有I/O事件、定时任务和其他回调。

while(条件)

{

1、IO复用函数检测socket事件

2、处理socket可读事件

3、处理socket可写事件

4、处理socket异常事件

5、遍历定时器队列，检查是否有定时器事件到期，有则执行定时器的回调函数

6、遍历其他任务队列，检测是否有其他任务需要执行，有执行

}

cpp 复制代码

void CEventDispatch::StartDispatch(uint32_t wait_timeout)
{
	struct epoll_event events[1024];
	int nfds = 0;

    if(running)
        return;
    running = true;

	while (running)
	{
		nfds = epoll_wait(m_epfd, events, 1024, wait_timeout);
		for (int i = 0; i < nfds; i++)
		{
			int ev_fd = events[i].data.fd;
			CBaseSocket* pSocket = FindBaseSocket(ev_fd);
			if (!pSocket)
				continue;

            //Commit by zhfu @2015-02-28
            #ifdef EPOLLRDHUP
            if (events[i].events & EPOLLRDHUP)
            {
                //log("On Peer Close, socket=%d, ev_fd);
                pSocket->OnClose();
            }
            #endif
            // Commit End

			if (events[i].events & EPOLLIN)
			{
				//log("OnRead, socket=%d\n", ev_fd);
				pSocket->OnRead();
			}

			if (events[i].events & EPOLLOUT)
			{
				//log("OnWrite, socket=%d\n", ev_fd);
				pSocket->OnWrite();
			}

			if (events[i].events & (EPOLLPRI | EPOLLERR | EPOLLHUP))
			{
				//log("OnClose, socket=%d\n", ev_fd);
				pSocket->OnClose();
			}

			pSocket->ReleaseRef();
		}

		_CheckTimer();
        _CheckLoop();
	}
}

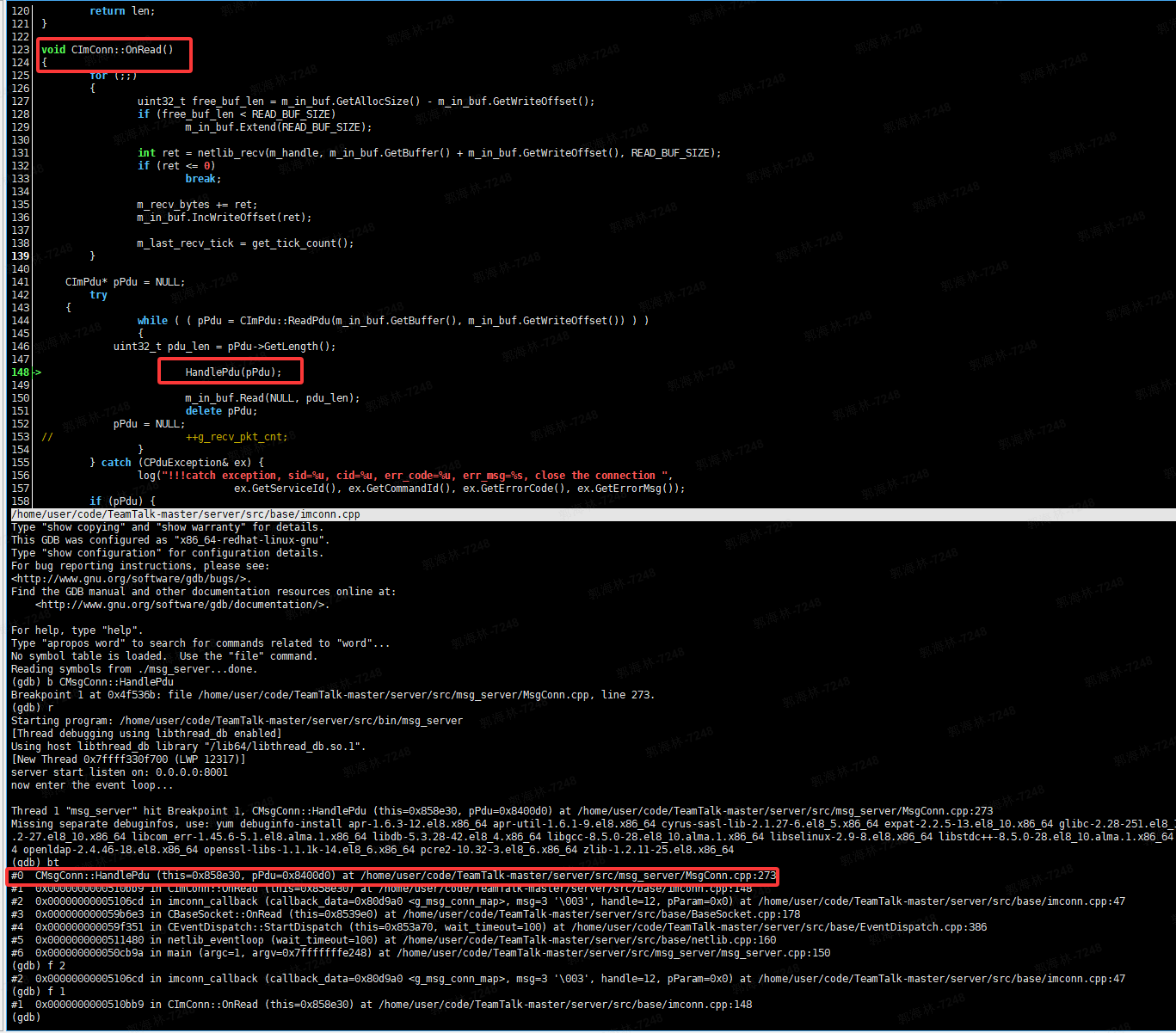

每个实例(比如:FileServConn、DBServConn、LoginServConn等)的业务处理在HandlePdu函数中，比如CMsgConn::HandlePdu如下，当socket可读时，会一层一层回调，调到CImConn::OnRead，OnRead中又调用HandlePdu(pPdu)，根据多态会调用到具体业务子类的 HandlePdu函数，详细业务需要调试HandlePdu理解。

cpp 复制代码

void CMsgConn::HandlePdu(CImPdu* pPdu)
{
	// request authorization check
	if (pPdu->GetCommandId() != CID_LOGIN_REQ_USERLOGIN && !IsOpen() && IsKickOff()) {
        log("HandlePdu, wrong msg. ");
        throw CPduException(pPdu->GetServiceId(), pPdu->GetCommandId(), ERROR_CODE_WRONG_SERVICE_ID, "HandlePdu error, user not login. ");
		return;
    }
	switch (pPdu->GetCommandId()) {
        case CID_OTHER_HEARTBEAT:
            _HandleHeartBeat(pPdu);
            break;
        case CID_LOGIN_REQ_USERLOGIN:
            _HandleLoginRequest(pPdu );
            break;
        case CID_LOGIN_REQ_LOGINOUT:
            _HandleLoginOutRequest(pPdu);
            break;
        case CID_LOGIN_REQ_DEVICETOKEN:
            _HandleClientDeviceToken(pPdu);
            break;
        case CID_LOGIN_REQ_KICKPCCLIENT:
            _HandleKickPCClient(pPdu);
            break;
        case CID_LOGIN_REQ_PUSH_SHIELD:
            _HandlePushShieldRequest(pPdu);
            break;

        case CID_LOGIN_REQ_QUERY_PUSH_SHIELD:
            _HandleQueryPushShieldRequest(pPdu);
            break;
        case CID_MSG_DATA:
            _HandleClientMsgData(pPdu);
            break;
        case CID_MSG_DATA_ACK:
            _HandleClientMsgDataAck(pPdu);
            break;
        case CID_MSG_TIME_REQUEST:
            _HandleClientTimeRequest(pPdu);
            break;
        case CID_MSG_LIST_REQUEST:
            _HandleClientGetMsgListRequest(pPdu);
            break;
        case CID_MSG_GET_BY_MSG_ID_REQ:
            _HandleClientGetMsgByMsgIdRequest(pPdu);
            break;
        case CID_MSG_UNREAD_CNT_REQUEST:
            _HandleClientUnreadMsgCntRequest(pPdu );
            break;
        case CID_MSG_READ_ACK:
            _HandleClientMsgReadAck(pPdu);
            break;
        case CID_MSG_GET_LATEST_MSG_ID_REQ:
            _HandleClientGetLatestMsgIDReq(pPdu);
            break;
        case CID_SWITCH_P2P_CMD:
            _HandleClientP2PCmdMsg(pPdu );
            break;
        case CID_BUDDY_LIST_RECENT_CONTACT_SESSION_REQUEST:
            _HandleClientRecentContactSessionRequest(pPdu);
            break;
        case CID_BUDDY_LIST_USER_INFO_REQUEST:
            _HandleClientUserInfoRequest( pPdu );
            break;
        case CID_BUDDY_LIST_REMOVE_SESSION_REQ:
            _HandleClientRemoveSessionRequest( pPdu );
            break;
        case CID_BUDDY_LIST_ALL_USER_REQUEST:
            _HandleClientAllUserRequest(pPdu );
            break;
        case CID_BUDDY_LIST_CHANGE_AVATAR_REQUEST:
            _HandleChangeAvatarRequest(pPdu);
            break;
        case CID_BUDDY_LIST_CHANGE_SIGN_INFO_REQUEST:
            _HandleChangeSignInfoRequest(pPdu);
            break;

        case CID_BUDDY_LIST_USERS_STATUS_REQUEST:
            _HandleClientUsersStatusRequest(pPdu);
            break;
        case CID_BUDDY_LIST_DEPARTMENT_REQUEST:
            _HandleClientDepartmentRequest(pPdu);
            break;
        // for group process
        case CID_GROUP_NORMAL_LIST_REQUEST:
            s_group_chat->HandleClientGroupNormalRequest(pPdu, this);
            break;
        case CID_GROUP_INFO_REQUEST:
            s_group_chat->HandleClientGroupInfoRequest(pPdu, this);
            break;
        case CID_GROUP_CREATE_REQUEST:
            s_group_chat->HandleClientGroupCreateRequest(pPdu, this);
            break;
        case CID_GROUP_CHANGE_MEMBER_REQUEST:
            s_group_chat->HandleClientGroupChangeMemberRequest(pPdu, this);
            break;
        case CID_GROUP_SHIELD_GROUP_REQUEST:
            s_group_chat->HandleClientGroupShieldGroupRequest(pPdu, this);
            break;

        case CID_FILE_REQUEST:
            s_file_handler->HandleClientFileRequest(this, pPdu);
            break;
        case CID_FILE_HAS_OFFLINE_REQ:
            s_file_handler->HandleClientFileHasOfflineReq(this, pPdu);
            break;
        case CID_FILE_ADD_OFFLINE_REQ:
            s_file_handler->HandleClientFileAddOfflineReq(this, pPdu);
            break;
        case CID_FILE_DEL_OFFLINE_REQ:
            s_file_handler->HandleClientFileDelOfflineReq(this, pPdu);
            break;
        default:
            log("wrong msg, cmd id=%d, user id=%u. ", pPdu->GetCommandId(), GetUserId());
            break;
	}
}
