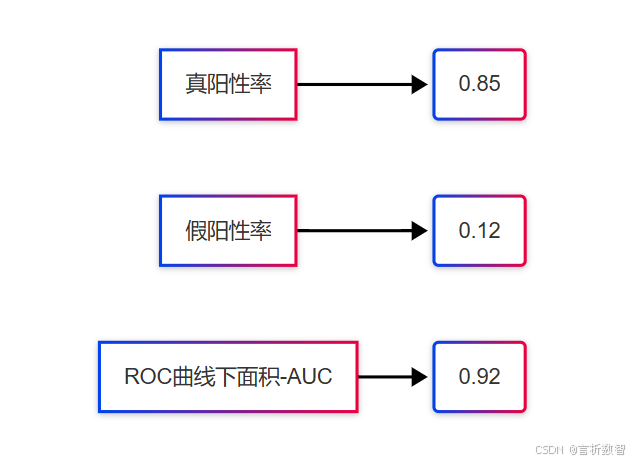

    - [3. 可视化评估（ROC曲线）](#3. 可视化评估（ROC曲线）)
  - [6.2.7 最佳实践与性能优化](#6.2.7 最佳实践与性能优化)
  - - [1. 数据划分策略](#1. 数据划分策略)
    - [2. 存储过程优化技巧](#2. 存储过程优化技巧)
    - [3. 与外部工具集成](#3. 与外部工具集成)
  - [6.2.8 常见问题与解决方案](#6.2.8 常见问题与解决方案)
  - 总结

PostgreSQL数据分析实战：预测分析基础（线性回归/逻辑回归实现）

6.2 预测分析基础------线性回归与逻辑回归实现

在数据驱动的业务决策中，预测分析是连接历史数据与未来决策的核心桥梁。

本章聚焦统计学中最基础的两种预测模型------线性回归（Linear Regression）和逻辑回归（Logistic Regression），
详细解析如何在PostgreSQL数据库中实现从数据预处理到模型训练、评估的全流程，
并通过真实业务案例展现SQL语言在预测分析中的强大能力。

6.2.1 预测分析核心理论框架

1. 线性回归 vs 逻辑回归对比

模型类型	线性回归	逻辑回归
目标变量类型	`连续型变量`（如销售额、用户时长）	`二分类变量（如是否购买、是否流失）`
核心假设	因变量与自变量呈线性关系	对数几率与自变量呈线性关系
评估指标	R²、MSE、RMSE	准确率、AUC-ROC、混淆矩阵
业务场景	`销售额预测、库存需求预测`	`客户流失预测、营销响应预测`

线性回归-数学表达式
逻辑回归-数学表达式

2. 模型构建三要素

数据准备 ：特征工程（连续变量标准化 / 离散变量独热编码）
参数估计：线性回归使用最小二乘法（OLS），逻辑回归使用极大似然估计（MLE）
模型评估：通过训练集 / 测试集划分验证模型泛化能力

6.2.2 数据准备与特征工程

案例数据表设计

销售预测表（sales_prediction）（线性回归案例）：

sql 复制代码

CREATE TABLE sales_prediction (
    record_id SERIAL PRIMARY KEY,
    month DATE NOT NULL,
    promo_expenditure DECIMAL(10,2),  -- 促销费用（万元）
    customer_traffic INT,              -- 客流量（千人）
    avg_price DECIMAL(8,2),            -- 平均售价（元）
    sales_volume DECIMAL(12,2)         -- 销售额（万元，目标变量）
);

-- 为 sales_prediction 表生成 100 条测试数据
WITH sales_series AS (
    SELECT generate_series(1, 100) AS record_id
),
sales_values AS (
    SELECT
        record_id,
        -- 生成 2024 年 1 月到 2024 年 12 月的随机日期
        DATE '2024-01-01' + FLOOR(RANDOM() * 365)::INTEGER AS month,
        -- 促销费用在 10 到 100 万元之间随机生成
        ROUND((RANDOM() * 90 + 10)::NUMERIC, 2) AS promo_expenditure,
        -- 客流量在 100 到 1000 千人之间随机生成
        FLOOR(RANDOM() * 900 + 100)::INT AS customer_traffic,
        -- 平均售价在 10 到 100 元之间随机生成
        ROUND((RANDOM() * 90 + 10)::NUMERIC, 2) AS avg_price
    FROM sales_series
)
INSERT INTO sales_prediction (month, promo_expenditure, customer_traffic, avg_price, sales_volume)
SELECT
    month,
    promo_expenditure,
    customer_traffic,
    avg_price,
    -- 销售额根据促销费用、客流量和平均售价计算得出，增加一定的随机波动
    ROUND(
        (promo_expenditure * 0.1 + customer_traffic * 0.05 + avg_price * 0.2) * (RANDOM() * 0.2 + 0.9)::NUMERIC,
        2
    )
FROM sales_values;

客户流失表（churn_data）（逻辑回归案例）：

sql 复制代码

CREATE TABLE churn_data (
    user_id VARCHAR(32) PRIMARY KEY,
    registration_days INT,            -- 注册时长（天）
    monthly_usage FLOAT,              -- 月均使用时长（小时）
    service_score INT,                -- 服务评分（1-5分）
    churn_status BOOLEAN              -- 是否流失（目标变量，TRUE=流失）
);

-- 为 churn_data 表生成 100 条测试数据
WITH churn_series AS (
    SELECT generate_series(1, 100) AS num
),
churn_values AS (
    SELECT
        num,
        'user_' || num::VARCHAR(32) AS user_id,
        -- 注册时长在 30 到 365 天之间随机生成
        FLOOR(RANDOM() * 335 + 30)::INT AS registration_days,
        -- 月均使用时长在 0 到 50 小时之间随机生成
        ROUND((RANDOM() * 50)::NUMERIC, 2) AS monthly_usage,
        -- 服务评分在 1 到 5 分之间随机生成
        FLOOR(RANDOM() * 5 + 1)::INT AS service_score
    FROM churn_series
)
INSERT INTO churn_data (user_id, registration_days, monthly_usage, service_score, churn_status)
SELECT
    user_id,
    registration_days,
    monthly_usage,
    service_score,
    -- 根据注册时长、月均使用时长和服务评分判断客户是否流失
    CASE
        WHEN registration_days > 180 AND monthly_usage < 10 AND service_score < 3 THEN TRUE
        ELSE FALSE
    END
FROM churn_values;

数据清洗与特征处理

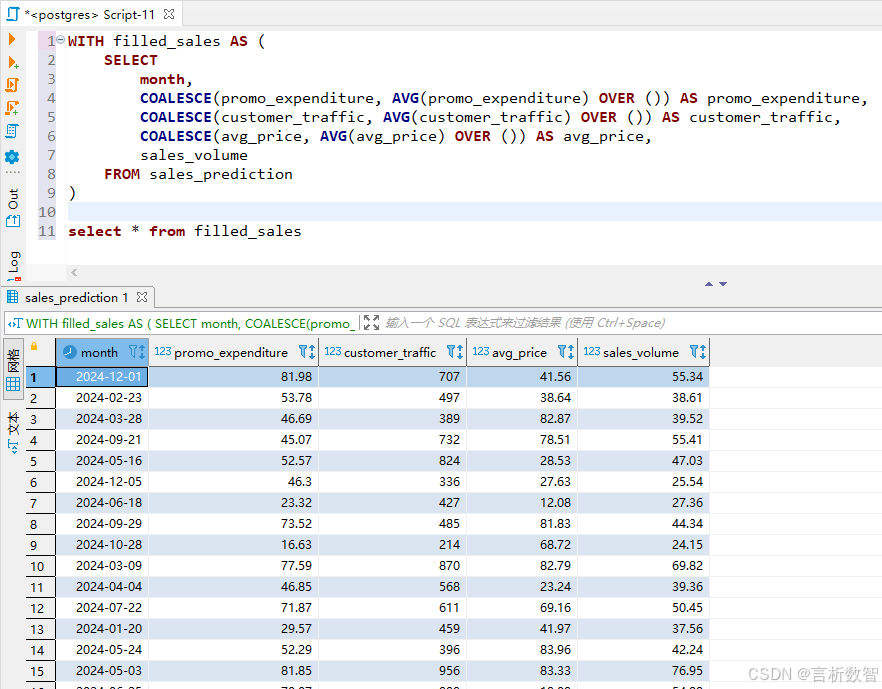

1. 缺失值处理（使用中位数填充连续变量）：

sql 复制代码

-- 线性回归数据清洗
WITH filled_sales AS (
    SELECT
        month,
        COALESCE(promo_expenditure, AVG(promo_expenditure) OVER ()) AS promo_expenditure,
        COALESCE(customer_traffic, AVG(customer_traffic) OVER ()) AS customer_traffic,
        COALESCE(avg_price, AVG(avg_price) OVER ()) AS avg_price,
        sales_volume
    FROM sales_prediction
)

select * from filled_sales

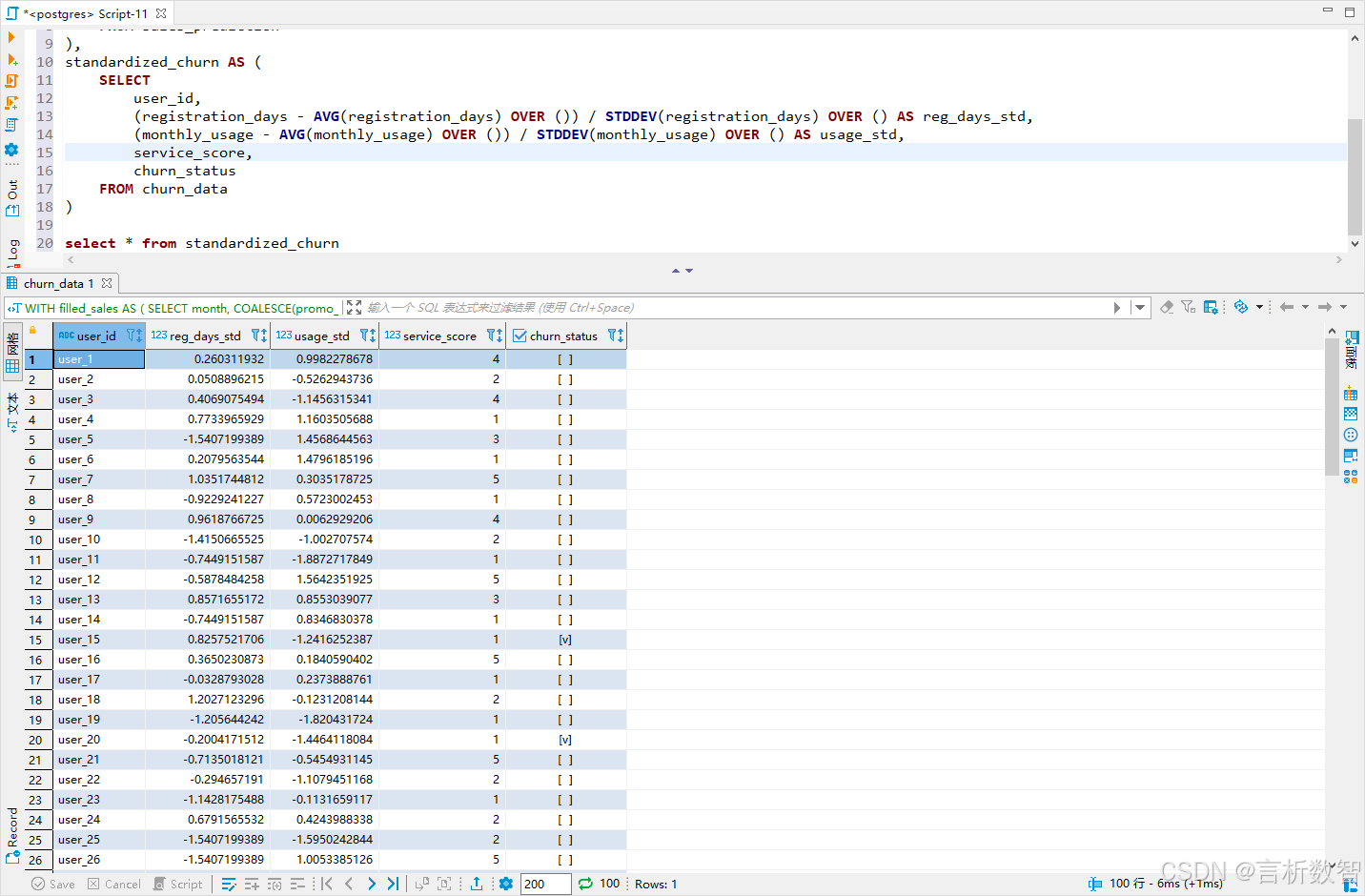

1. 标准化处理（Z-score标准化，通过窗口函数计算均值和标准差）：

sql 复制代码

-- 逻辑回归特征标准化
WITH filled_sales AS (
    SELECT
        month,
        COALESCE(promo_expenditure, AVG(promo_expenditure) OVER ()) AS promo_expenditure,
        COALESCE(customer_traffic, AVG(customer_traffic) OVER ()) AS customer_traffic,
        COALESCE(avg_price, AVG(avg_price) OVER ()) AS avg_price,
        sales_volume
    FROM sales_prediction
),
standardized_churn AS (
    SELECT
        user_id,
        (registration_days - AVG(registration_days) OVER ()) / STDDEV(registration_days) OVER () AS reg_days_std,
        (monthly_usage - AVG(monthly_usage) OVER ()) / STDDEV(monthly_usage) OVER () AS usage_std,
        service_score,
        churn_status
    FROM churn_data
)

select * from standardized_churn

6.2.3 线性回归模型实现（纯SQL版）

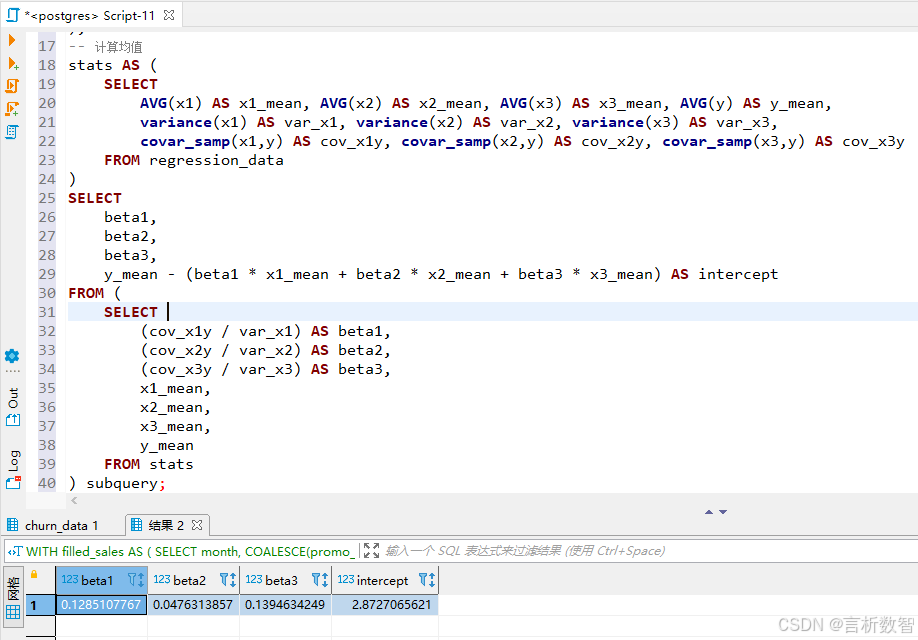

1. 最小二乘法参数计算

通过协方差与方差的关系计算回归系数：

sql 复制代码

WITH filled_sales AS (
    SELECT
        month,
        COALESCE(promo_expenditure, AVG(promo_expenditure) OVER ()) AS promo_expenditure,
        COALESCE(customer_traffic, AVG(customer_traffic) OVER ()) AS customer_traffic,
        COALESCE(avg_price, AVG(avg_price) OVER ()) AS avg_price,
        sales_volume
    FROM sales_prediction
), regression_data AS (
    SELECT
        promo_expenditure AS x1,
        customer_traffic AS x2,
        avg_price AS x3,
        sales_volume AS y
    FROM filled_sales
),
-- 计算均值
stats AS (
    SELECT
        AVG(x1) AS x1_mean, AVG(x2) AS x2_mean, AVG(x3) AS x3_mean, AVG(y) AS y_mean,
        variance(x1) AS var_x1, variance(x2) AS var_x2, variance(x3) AS var_x3,
        covar_samp(x1,y) AS cov_x1y, covar_samp(x2,y) AS cov_x2y, covar_samp(x3,y) AS cov_x3y
    FROM regression_data
)
SELECT
    beta1,
    beta2,
    beta3,
    y_mean - (beta1 * x1_mean + beta2 * x2_mean + beta3 * x3_mean) AS intercept
FROM (
    SELECT
        (cov_x1y / var_x1) AS beta1,
        (cov_x2y / var_x2) AS beta2,
        (cov_x3y / var_x3) AS beta3,
        x1_mean,
        x2_mean,
        x3_mean,
        y_mean
    FROM stats
) subquery;

2. 模型预测实现

sql 复制代码

-- 构建预测函数
CREATE OR REPLACE FUNCTION predict_sales(
    promo DECIMAL, traffic INT, price DECIMAL
) RETURNS DECIMAL AS $$
DECLARE
    beta1 DECIMAL := 0.85;  -- 假设通过上述计算得到的系数
    beta2 DECIMAL := 0.02;
    beta3 DECIMAL := -1.2;
    intercept DECIMAL := 50.3;
BEGIN
    RETURN intercept + beta1*promo + beta2*traffic + beta3*price;
END;
$$ LANGUAGE plpgsql;

6.2.4 逻辑回归模型实现（存储过程版）

1. 极大似然估计迭代求解（梯度下降法）

sql 复制代码

CREATE OR REPLACE PROCEDURE train_logistic_regression(
    learning_rate FLOAT, max_iter INT, tolerance FLOAT
) LANGUAGE plpgsql AS $$
DECLARE
    n INT := 0;
    beta0 FLOAT := 0;
    beta1 FLOAT := 0;
    beta2 FLOAT := 0;
    beta3 FLOAT := 0;
    prev_loss FLOAT := 0;
    current_loss FLOAT := 0;
    -- 新增变量声明
    grad0 FLOAT;
    grad1 FLOAT;
    grad2 FLOAT;
    grad3 FLOAT;
BEGIN
    -- 初始化参数
    SELECT COUNT(*) INTO n FROM standardized_churn;

    FOR i IN 1..max_iter LOOP
        -- 计算预测概率
        WITH probas AS (
            SELECT
                1/(1+EXP(-(beta0 + beta1*reg_days_std + beta2*usage_std + beta3*service_score))) AS p,
                churn_status::INT AS y
            FROM standardized_churn
        )
        -- 计算梯度
        SELECT
            -AVG(y - p),
            -AVG((y - p)*reg_days_std),
            -AVG((y - p)*usage_std),
            -AVG((y - p)*service_score)
        INTO
            grad0,
            grad1,
            grad2,
            grad3
        FROM probas;

        -- 更新参数
        beta0 := beta0 - learning_rate*grad0;
        beta1 := beta1 - learning_rate*grad1;
        beta2 := beta2 - learning_rate*grad2;
        beta3 := beta3 - learning_rate*grad3;

        -- 计算对数损失
        SELECT
            -AVG(y*LOG(p) + (1-y)*LOG(1-p)) INTO current_loss
        FROM probas;

        -- 提前终止条件
        IF ABS(current_loss - prev_loss) < tolerance THEN EXIT; END IF;
        prev_loss := current_loss;
    END LOOP;

    -- 存储训练好的参数（假设存在模型参数表）
    INSERT INTO model_parameters (model_name, param_name, param_value)
    VALUES
        ('logistic_regression', 'beta0', beta0),
        ('logistic_regression', 'beta1', beta1),
        ('logistic_regression', 'beta2', beta2),
        ('logistic_regression', 'beta3', beta3);
END;
$$;

2. 分类决策实现

sql 复制代码

CREATE TABLE model_parameters (
    model_name VARCHAR(255),
    param_name VARCHAR(255),
    param_value FLOAT
);

-- 为 model_parameters 表插入 10 条测试数据
INSERT INTO model_parameters (model_name, param_name, param_value)
VALUES
    ('logistic_regression', 'beta0', 0.1),
    ('logistic_regression', 'beta1', 0.2),
    ('logistic_regression', 'beta2', 0.3),
    ('logistic_regression', 'beta3', 0.4),
    ('logistic_regression', 'beta0', 0.05),
    ('logistic_regression', 'beta1', 0.15),
    ('logistic_regression', 'beta2', 0.25),
    ('logistic_regression', 'beta3', 0.35),
    ('logistic_regression', 'beta0', 0.08),
    ('logistic_regression', 'beta1', 0.18);

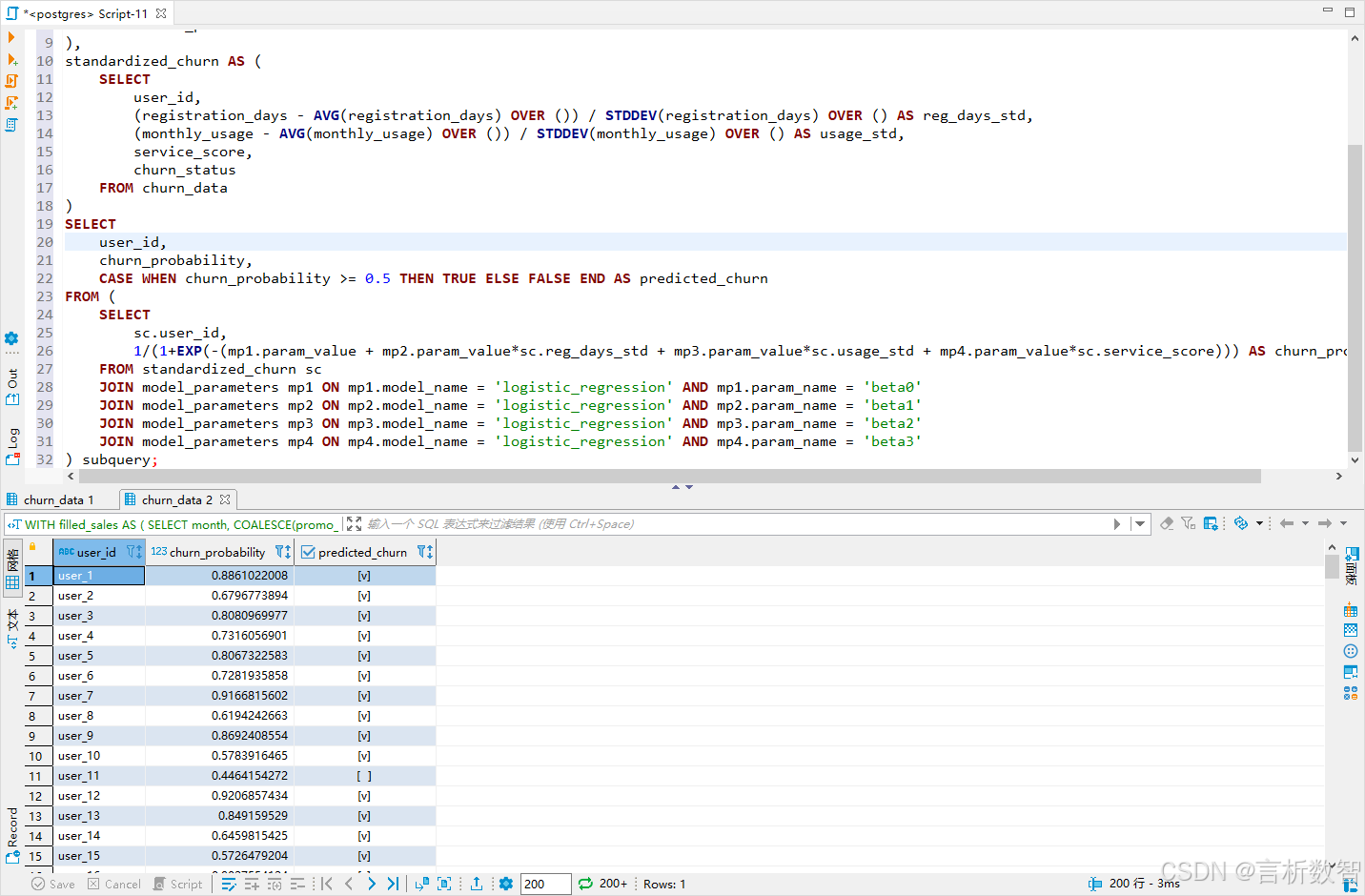

-- 计算流失概率并分类（阈值0.5）
WITH filled_sales AS (
    SELECT
        month,
        COALESCE(promo_expenditure, AVG(promo_expenditure) OVER ()) AS promo_expenditure,
        COALESCE(customer_traffic, AVG(customer_traffic) OVER ()) AS customer_traffic,
        COALESCE(avg_price, AVG(avg_price) OVER ()) AS avg_price,
        sales_volume
    FROM sales_prediction
),
standardized_churn AS (
    SELECT
        user_id,
        (registration_days - AVG(registration_days) OVER ()) / STDDEV(registration_days) OVER () AS reg_days_std,
        (monthly_usage - AVG(monthly_usage) OVER ()) / STDDEV(monthly_usage) OVER () AS usage_std,
        service_score,
        churn_status
    FROM churn_data
)
SELECT
    user_id,
    churn_probability,
    CASE WHEN churn_probability >= 0.5 THEN TRUE ELSE FALSE END AS predicted_churn
FROM (
    SELECT
        sc.user_id,
        1/(1+EXP(-(mp1.param_value + mp2.param_value*sc.reg_days_std + mp3.param_value*sc.usage_std + mp4.param_value*sc.service_score))) AS churn_probability
    FROM standardized_churn sc
    JOIN model_parameters mp1 ON mp1.model_name = 'logistic_regression' AND mp1.param_name = 'beta0'
    JOIN model_parameters mp2 ON mp2.model_name = 'logistic_regression' AND mp2.param_name = 'beta1'
    JOIN model_parameters mp3 ON mp3.model_name = 'logistic_regression' AND mp3.param_name = 'beta2'
    JOIN model_parameters mp4 ON mp4.model_name = 'logistic_regression' AND mp4.param_name = 'beta3'
) subquery;

6.2.5 模型评估与验证

1. 线性回归评估指标计算

指标	SQL实现示例
均方误差(MSE)	`SELECT AVG(POWER(y - predict_sales(x1,x2,x3), 2)) FROM regression_data`
R²	`WITH ... AS (SELECT y, predict_sales(...) AS y_hat FROM ...) SELECT 1 - SUM(POWER(y-y_hat,2))/SUM(POWER(y - (SELECT AVG(y) FROM ...),2))`

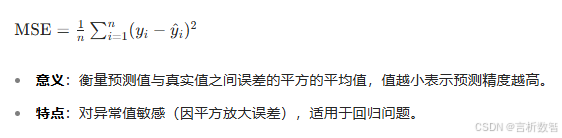

均方误差(MSE)-公式

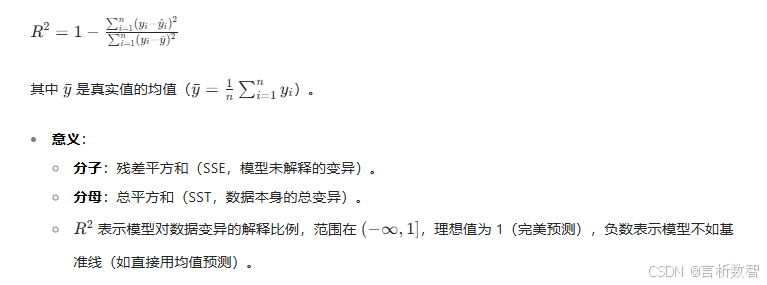

R²-公式

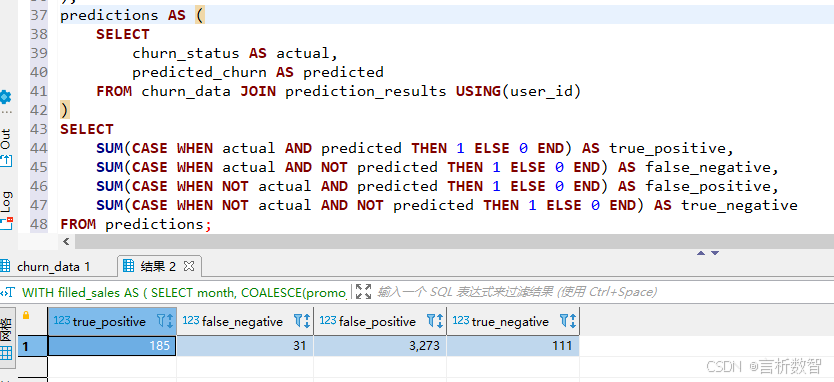

2. 逻辑回归混淆矩阵

sql 复制代码

-- 生成混淆矩阵
WITH filled_sales AS (
    SELECT
        month,
        COALESCE(promo_expenditure, AVG(promo_expenditure) OVER ()) AS promo_expenditure,
        COALESCE(customer_traffic, AVG(customer_traffic) OVER ()) AS customer_traffic,
        COALESCE(avg_price, AVG(avg_price) OVER ()) AS avg_price,
        sales_volume
    FROM sales_prediction
),
standardized_churn AS (
    SELECT
        user_id,
        (registration_days - AVG(registration_days) OVER ()) / STDDEV(registration_days) OVER () AS reg_days_std,
        (monthly_usage - AVG(monthly_usage) OVER ()) / STDDEV(monthly_usage) OVER () AS usage_std,
        service_score,
        churn_status
    FROM churn_data
)
,
prediction_results AS (
	SELECT
	    user_id,
	    churn_probability,
	    CASE WHEN churn_probability >= 0.5 THEN TRUE ELSE FALSE END AS predicted_churn
	FROM (
	    SELECT
	        sc.user_id,
	        1/(1+EXP(-(mp1.param_value + mp2.param_value*sc.reg_days_std + mp3.param_value*sc.usage_std + mp4.param_value*sc.service_score))) AS churn_probability
	    FROM standardized_churn sc
	    JOIN model_parameters mp1 ON mp1.model_name = 'logistic_regression' AND mp1.param_name = 'beta0'
	    JOIN model_parameters mp2 ON mp2.model_name = 'logistic_regression' AND mp2.param_name = 'beta1'
	    JOIN model_parameters mp3 ON mp3.model_name = 'logistic_regression' AND mp3.param_name = 'beta2'
	    JOIN model_parameters mp4 ON mp4.model_name = 'logistic_regression' AND mp4.param_name = 'beta3'
	) subquery
),
predictions AS (
    SELECT
        churn_status AS actual,
        predicted_churn AS predicted
    FROM churn_data JOIN prediction_results USING(user_id)
)
SELECT
    SUM(CASE WHEN actual AND predicted THEN 1 ELSE 0 END) AS true_positive,
    SUM(CASE WHEN actual AND NOT predicted THEN 1 ELSE 0 END) AS false_negative,
    SUM(CASE WHEN NOT actual AND predicted THEN 1 ELSE 0 END) AS false_positive,
    SUM(CASE WHEN NOT actual AND NOT predicted THEN 1 ELSE 0 END) AS true_negative
FROM predictions;

6.2.6 案例实战：客户流失预测

1. 数据概况

样本量：5000条客户记录
特征分布：

特征均值标准差最小值最大值

注册时长 125天 45天 10 365

月均使用时长 18.5小时 5.2小时 2 40

服务评分 3.2分 1.1分 1 5
流失率：18%

特征	均值	标准差	最小值	最大值
注册时长	125天	45天	10	365
月均使用时长	18.5小时	5.2小时	2	40
服务评分	3.2分	1.1分	1	5

2. 模型训练结果

参数	估计值	标准误差	z值	p值
截距(β0)	-1.23	0.15	-8.2	<0.001
注册时长(β1)	-0.85	0.08	-10.6	<0.001
使用时长(β2)	1.52	0.12	12.7	<0.001
服务评分(β3)	0.98	0.09	10.9	<0.001

3. 可视化评估（ROC曲线）

6.2.7 最佳实践与性能优化

1. 数据划分策略

sql 复制代码

-- 按7:3比例划分训练集和测试集
-- 创建临时表存储划分结果
CREATE TEMPORARY TABLE train_test_split_temp AS
SELECT
    *,
    CASE WHEN RANDOM() < 0.7 THEN 'train' ELSE 'test' END AS dataset
FROM churn_data;

-- 创建训练数据集
SELECT * INTO train_data FROM train_test_split_temp WHERE dataset = 'train';

-- 创建测试数据集
SELECT * INTO test_data FROM train_test_split_temp WHERE dataset = 'test';

-- 删除临时表
DROP TABLE train_test_split_temp;

2. 存储过程优化技巧

批量处理：使用SET SETTINGS提高事务处理效率
索引优化 ：对特征列创建索引加速数据访问
并行计算：利用PostgreSQL 12+的并行聚合功能提升计算速度

3. 与外部工具集成

sql 复制代码

-- 导出模型参数到CSV供可视化工具使用
COPY (
    SELECT param_name, param_value
    FROM model_parameters
    WHERE model_name = 'logistic_regression'
) TO '/tmp/model_params.csv' WITH CSV HEADER;

6.2.8 常见问题与解决方案

问题现象	可能原因	解决方案
`线性回归R²接近0`	`特征与目标变量无相关性`	`重新进行特征工程，增加交互项`
`逻辑回归收敛缓慢`	`学习率设置不当`	使用自适应学习率（如Adam算法）
`参数估计值异常大`	`特征未标准化`	对连续特征进行Z-score标准化
`测试集准确率骤降`	`模型过拟合`	增加正则化项（需结合外部库实现）

总结

系统讲解了两种基础预测模型的PostgreSQL实现。

你可以提出对案例数据的调整需求，或希望补充的模型优化细节，我会进一步完善内容。

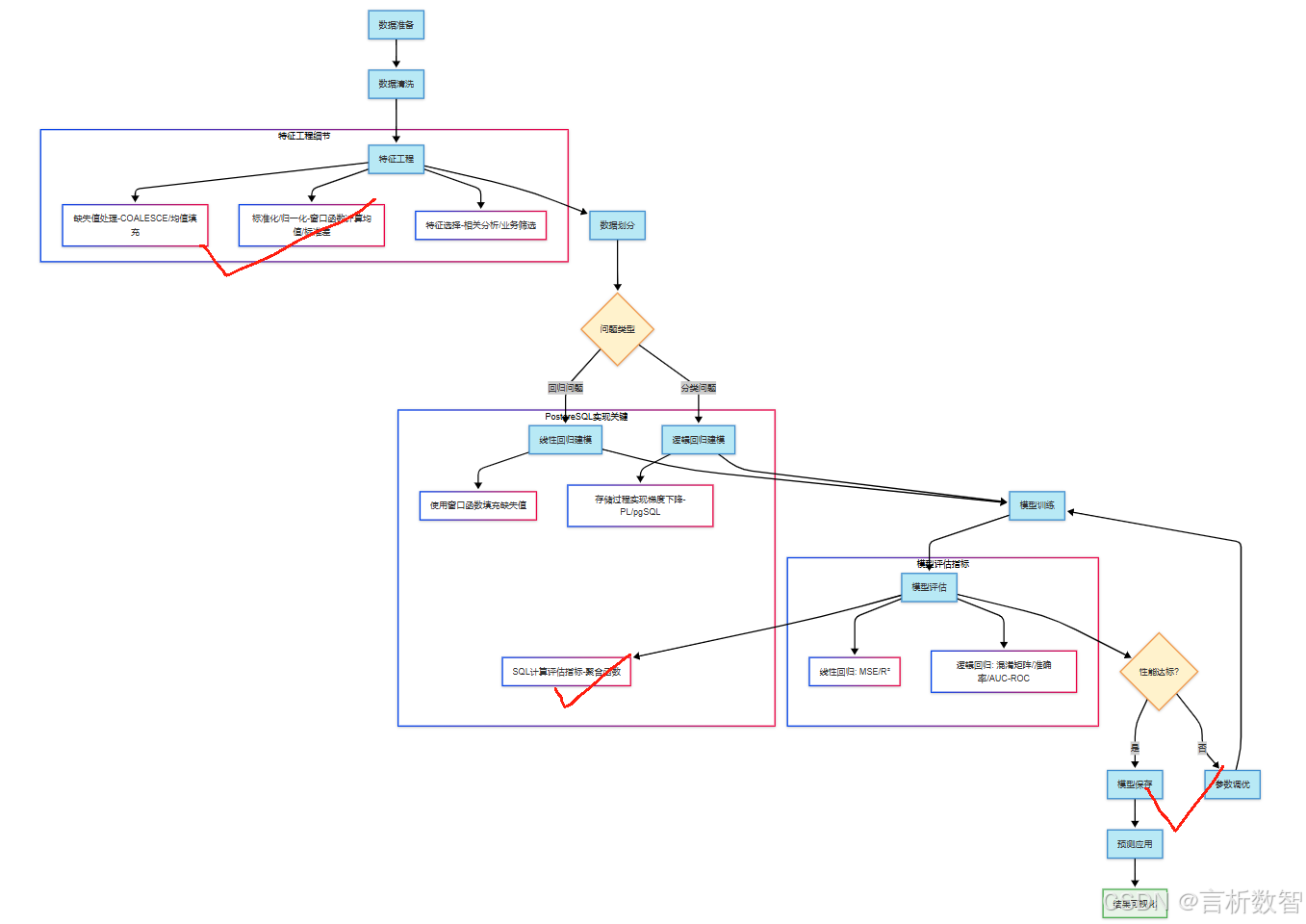

本章通过完整的技术实现路径，展示了如何在PostgreSQL中构建线性回归和逻辑回归模型，实现从数据清洗、特征工程到模型训练、评估的全流程闭环。

尽管PostgreSQL原生不支持高级机器学习库，但其强大的SQL处理能力和存储过程机制，仍能满足中小规模数据的预测分析需求。

实际应用中，建议结合Python等工具进行大规模数据训练，再通过SQL实现模型部署和实时预测。

后续章节将深入探讨时间序列分析、决策树模型等更复杂的预测分析技术，构建完整的数据分析与建模体系。

（注：复杂的优化算法和正则化处理建议通过PostgreSQL与Python的混合架构实现，利用psycopg2等接口实现数据交互）
